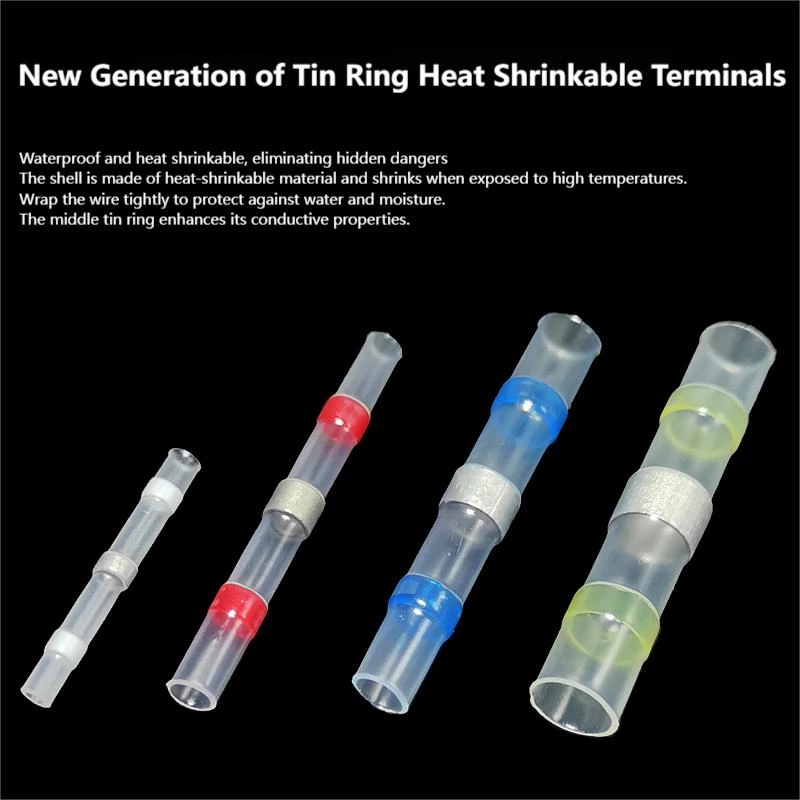

Waterproof pressure-free heat shrinkable solder joint
The role of pipes in heat shrink soldering The heat-shrinkable solder intermediate tube is specially designed for wire connection, solder heat-shrink protection, and waterproofing in one go. To provid
- Operating Temperature:
- -55℃ to +125℃；
- Minimum Shrinkage Temperature:
- 80℃
- Shrink Ratio:
- 2:1
- Standard Color:
- white, red, blue, yellow
- Withstand Voltage Level:
- 1KV
- Features
- Solder melting temperature: ≥160℃
The role of pipes in heat shrink soldering
The heat-shrinkable solder intermediate tube is specially designed for wire connection, solder heat-shrink protection, and waterproofing in one go. To provide good insulation performance and reduce installation costs, apply colored hot melt glue on both ends of the heat shrink tube. The hot melt glue solidifies and melts when heat shrinking. It is waterproof and heat shrinkable. It has a sealing and waterproof function, and the waterproof level can reach IP67. The use of pressure-free heat shrinkable solder is easy to install, the wiring is stable, and the quality is guaranteed. Resistant to high temperatures and aging, it protects wires and reduces fire safety hazards.
