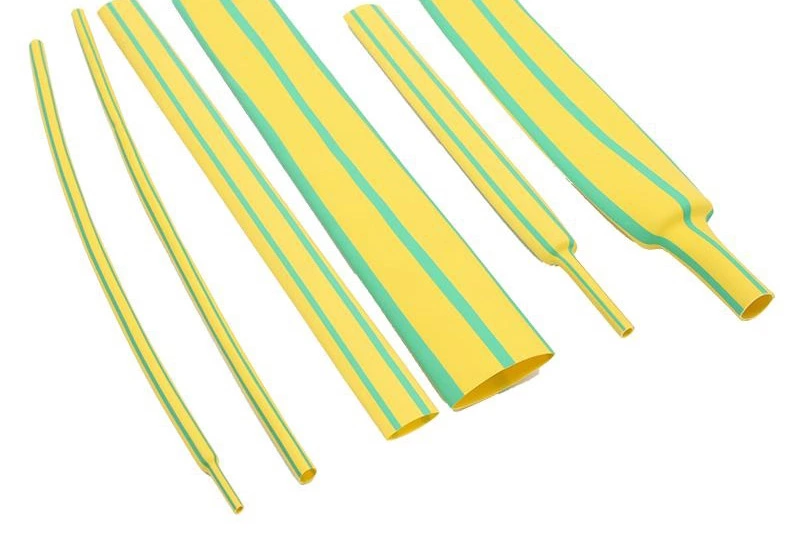

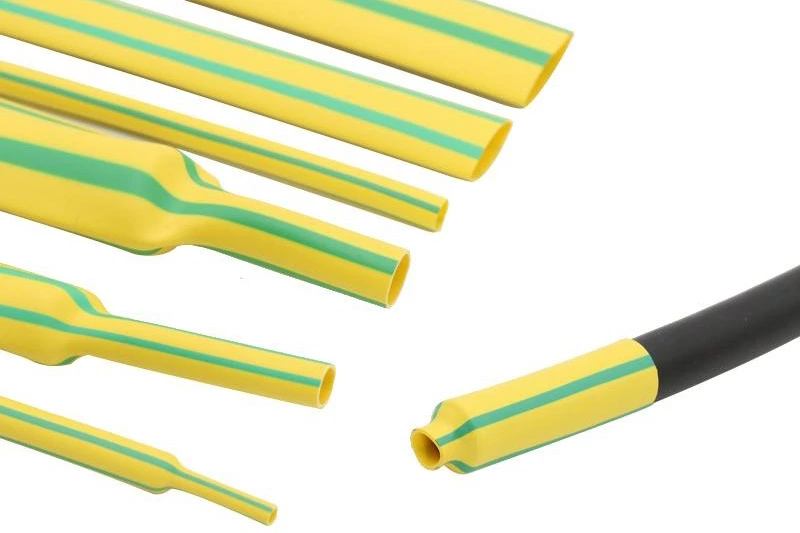

DUWAI DW5-YG Ground wire yellow and green two-color heat shrinkable tube
APPLICATIONS
The unique yellow-green striped color tubing is used for the ground wire identifying. It is widely used in the fields of wire marking, color coding as well as electrical insulation.
APPROVALS / SPECIFICATIONS
UL224, 125℃ VW-1 600V
OPERATING TEMPERATURE RANGE
- Continuous operating temperature: -55℃ ~ 125℃
- Minimum shrink temperature: 70℃
- Full recovery temperature: Above 110˚C
COLOR
Standard color: yellow-green, (special size, cut pieces are available on request.)
- Shrink ratio: 2:1&3:1
- Dual colors for identification
- Permanent tubing colors are conveniently used in marking
- Compliance with RoHS

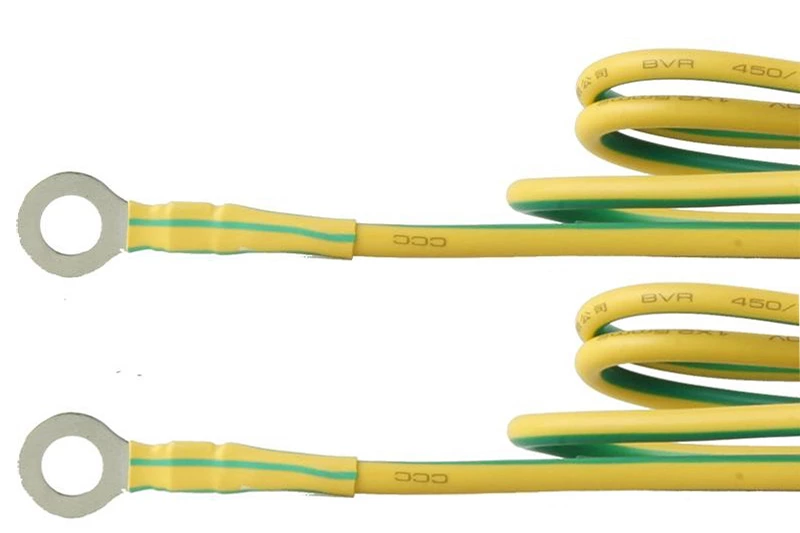

The yellow and green two-color heat shrinkable tube is made of two-color co-extrusion of environmentally friendly polyolefin materials and processed by radiation modification. The product is soft, highly flame-retardant, bright and durable in color, and has stable performance. It has excellent physical, chemical and electrical properties, does not contain bromine and heavy metal substances, and meets environmental protection requirements. Widely used for marking ground wires in wire bundles or cables, as well as marking special cables and busbar ducts. The grounded wiring harness must also be standardized and must be insulated and protected with yellow and green two-color heat shrink tubes. The yellow-green heat shrinkable tube can meet the performance requirements for its markings, and can effectively protect the markings of the wrapped grounding wire harness and pipes in complex environments.
|
Performance indicators of yellow and green two-color heat shrinkable tube |
||
|
Test items |
Test Methods |
Test Data |
|
Tensile Strength |
ASTM D 2671 |
10.4MPa |
|
Elongation at break |
ASTM D 2671 |
300% |
|
Heat aging tensile strength |
ASTM D 2671-158℃, 168H |
7.3MPa |
|
Thermal aging elongation at break |
ASTM D 2671-158℃, 168H |
100% |
|
Flame retardancy |
UL 224 VW-1 SAE-AMS-DTL-23053/5 |
pass |
|
Thermal shock |
ASTM D 2671 |
No cracks |
|
Cold bend test |
ASTM D 2671 |
No cracks |
|
Breakdown strength |
ASTM D 150 |
15KV/mm |
|
Volume resistivity |
ASTM D 876 |
1014Ω .cm |
|
Copper corrosiveness |
UL 224 |
pass |
|
Chemical resistance |
SAE-AMS-DTL-23053/5 |
pass |
|
Water absorption |
ASTM D 570 |
0.15% |
|
Deviation rate |
UL224 |
25% |
|
Longitudinal shrinkage |
UL224 |
±8% |
|
Specification table of yellow and green two-color heat shrinkable tube |
|||||
|
Specification（mm） |
before contraction（mm） |
After shrinkage（mm） |
shape |
Packing |
|
|
the inside diameter of |
the inside diameter of |
wall thickness |
meters/roll |
||
|
2:1 yellow and green two-color heat shrinkable tube specification table |
|||||
|
1.2/0.6 |
1.2 |
0.6 |
0.33 |
○ |
200 |
|
1.6/0.8 |
1.6 |
0.8 |
0.36 |
○ |
200 |
|
2.4/1.2 |
2.4 |
1.2 |
0.44 |
○ |
200 |
|
3.2/1.6 |
3.2 |
1.6 |
0.44 |
○ |
200 |
|
4.8/2.4 |
4.8 |
2.4 |
0.56 |
○ |
200 |
|
6.4/3.2 |
6.4 |
3.2 |
0.56 |
○ |
100 |
|
8.0/4.0 |
8 |
4 |
0.56 |
○ |
100 |
|
9.5/4.8 |
9.5 |
4.8 |
0.56 |
- |
100 |
|
12.7/6.4 |
12.7 |
6.4 |
0.65 |
- |
100 |
|
16/8.0 |
16 |
8 |
0.69 |
- |
100 |
|
19.1/9.5 |
19.1 |
9.5 |
0.8 |
- |
100 |
|
25.4/12.7 |
25.4 |
12.7 |
0.9 |
- |
100 |
|
31.8/15.9 |
31.8 |
15.9 |
0.9 |
- |
100 |
|
38.1/19.1 |
38.1 |
19.1 |
1.02 |
- |
100 |
|
50.8/25.4 |
50.8 |
25.4 |
1.02 |
- |
100 |
|
76.2/38.1 |
76.2 |
38.1 |
1.2 |
- |
100 |
|
101.6/50.8 |
101.6 |
50.8 |
1.3 |
- |
100 |
|
3:1 yellow and green two-color heat shrinkable tube specification table |
|||||
|
1.5/0.5 |
1.5 |
0.5 |
0.51 |
○ |
200 |
|
2.4/0.8 |
2.4 |
0.8 |
0.51 |
○ |
200 |
|
3.2/1.0 |
3.2 |
1 |
0.55 |
○ |
200 |
|
4.8/1.5 |
4.8 |
1.5 |
0.6 |
○ |
200 |
|
6.4/2.0 |
6.4 |
2 |
0.65 |
○ |
100 |
|
9.5/3.0 |
9.5 |
3 |
0.75 |
- |
100 |
|
12.7/4.0 |
12.7 |
4 |
0.75 |
- |
100 |
|
19.1/6.0 |
19.1 |
6 |
0.85 |
- |
50 |
|
25.4/8.0 |
25.4 |
8 |
1 |
- |
50 |
|
39.0/13.0 |
39 |
13 |
1.15 |
- |
50 |
|
Note: "○" means round tube, "-" means flat tube, special length can be cut. |
|||||
