Technical Parameters

Item NO.

American bolt number

screw dia.
d2(mm)

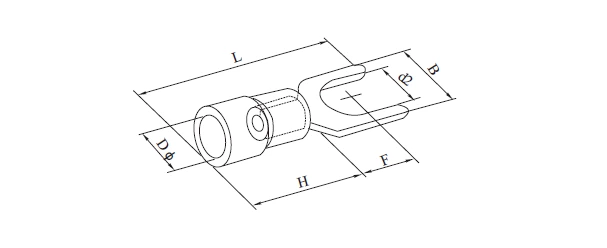

Dimension

Color

B
(mm)

L
(mm)

F
(mm)

H
(mm)

D φ
(mm)

Cross -sectional area:
0.5~1.5mm² (22-16)
Maximum current:
Imax=19A

SV1.25-3

#4

3.2

5.7

21.2

6.5

10.0

4.3

Red

SVS1.25-3.5

#6

3.7

5.7

21.2

6.5

SVL1.25-3.5

#6

3.7

6.4

21.2

6.5

SVS1.25-4

#8

4.3

6.4

21.2

6.5

SVM1.25-4

#8

4.3

7.2

21.2

6.5

SVL1.25-4

#8

4.3

8.1

21.2

6.5

SVS1.25-5

#10

5.3

8.1

21.2

6.5

SVL1.25-5

#10

5.3

9.5

21.2

6.5

SVS1.25-6

1/4

6.5

9.5

21.2

6.5

SVL1.25-6

1/4

6.5

12.0

21.2

11.0

Cross -sectional area:
1.5~2.5mm ²(16~14)
Maximum current:
Imax=27A

SV2-3

#4

3.2

5.7

21.2

6.5

10.0

4.9

blue

SVS2-3.5

#6

3.7

5.7

21.2

6.5

SVL2-3.5

#6

3.7

6.4

21.2

6.5

SVS2-4

#8

4.3

6.0

21.2

6.5

SVM2-4

#8

4.3

7.2

21.2

6.5

SVL2-4

#8

4.3

8.1

21.2

6.5

SVS2-5

#10

5.3

8.1

21.2

6.5

SVL2-5

#10

5.3

9.5

21.2

6.5

SVS2-6

1/4

6.5

9.5

21.2

11.0

SVL2-6

1/4

6.5

12.0

21.2

7.0

Cross -sectional area:
  2.5~4mm² (14~12)
Maximum current:
Imax=37A

SV3.5-4

#8

4.3

8.0

24.8

7.0

12.5

6.2

black

SV3.5-5

#10

5.3

8.0

24.8

12.1

SV3.5-6

1/4

6.5

12.0

28.0

7.5

Cross -sectional area:
     4~6mm² (12~10)
Maximum current:
Imax=48A

SV5.5-3.5

#6

3.7

8.3

25.2

7.5

12.5

6.7

yellow

SVS5.5-4

#8

4.3

8.3

25.2

7.5

SVL5.5-4

#8

4.3

9.0

23.9

7.5

SV5.5-5

#10

5.3

9.0

23.9

7.5

SVS5.5-6

1/4

6.5

9.0

23.9

7.5

SVL5.5-6

1/4

6.5

12.0

31.2

12.0

SV5.5-8

5/16

8.4

14.0

30.0

11.5
