DUWAI RHB-Circular preset insulated terminal Heat shrink type (hot glue lining)
APPLICATIONS
Heat shrink preset cold pressed end series is made of polyolefin and hot melt adhesive composite production of heat shrink sleeve,used to protect the connection,waterproof and anti-corrosion,can strengthen the fixed and shock-proof in rough environment,line beam fall off,with good insulation protection electronic connector function.Compared with conventional connectors,it has the advantages of durability,easy installation and low installation cost.
OPERATING TEMPERATURE RANGE
- Continuous operating temperature: -55℃ ~ 125℃
- Minimum shrink temperature: 80℃
- Full recovery temperature: Above 110˚C
- Full melting temperature of solder: 140˚C
COLOR
Standard color: yellow, red and blue
End material:Red copper
Surface coating:tin plating
Insulation material:polyethylene
Operating temperature:-55℃~125℃
Starting shrinkage temperature:80℃
Minimum full shrinkage temperature:140℃
|
Test Item |
Index |
Test condition |
|
|
Preaging |
Tensile strength |
Min.18MPa |
Room temperature |
|
elongate |
Min.200% |
||
|
After aging |
Tensile strength |
Min.11.5MPa |
150℃/7day |
|
elongate |
Min.100% |
||
|
Withstand voltage and breakdown voltage(before aging) |
Withstand 2.5KV within one minute without breakdown |
Room temperature |
|
|
Withstand voltage and breakdown voltage(after aging) |
Withstand 2.5KV within one minute without breakdown |
150℃/7day |
|
|
Cold bending |
No crack |
-40℃/4 Hour(s) |
|
|
Secant modulus(24%) |
250 MPa |
|
|
|
Volume resistivity |
Min.1014Ω.cM |
|
|
|
Thermal shock |
No crack |
200℃/4 Hour(s) |
|
|

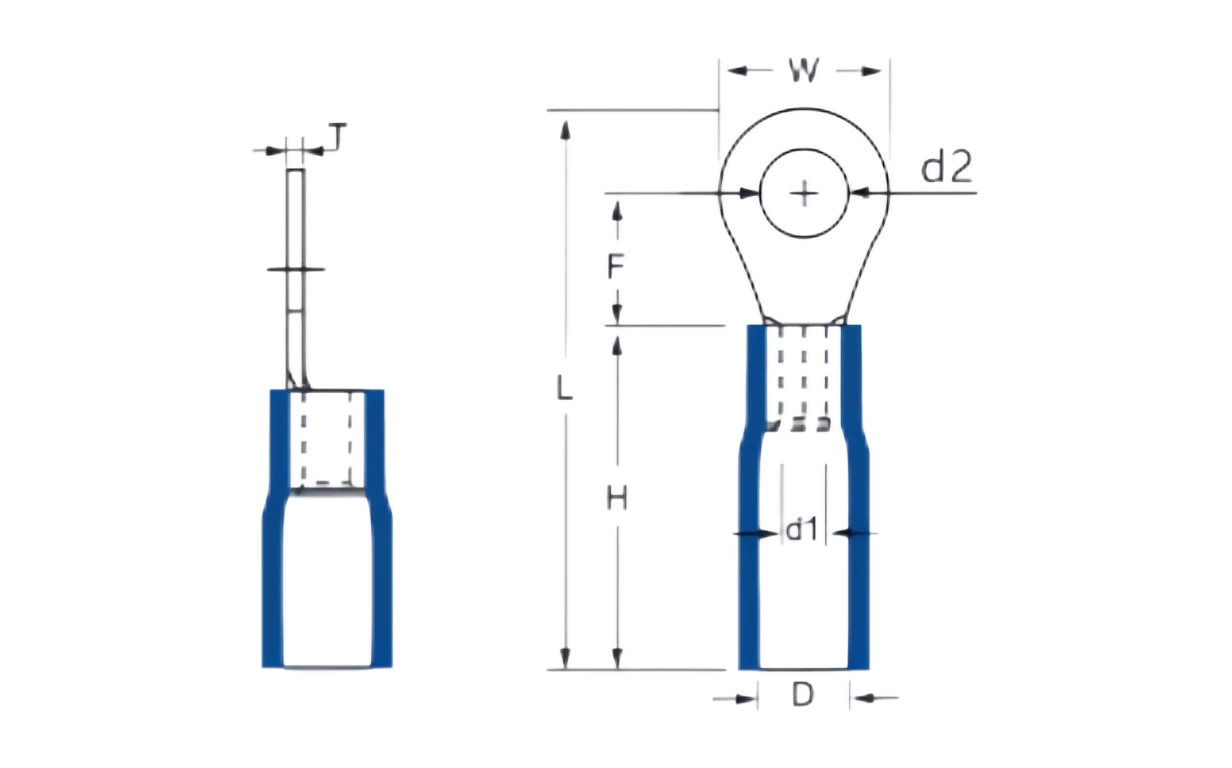

Model Number |
Stud Size |
Dimension(mm) |
PCS/PACK |
Color |
Explanation |
||||||||
|
Metric |
American |
d2 |
W |
F |
L |
H |
d1 |
D |
T |
||||
|
RHB1.25-4S |
4 |
#8 |
4.3 |
6.6 |
6.3 |
28.0 |
18 |
1.7 |
4.8 |
0.7 |
1000 |
Red |
Wire range:0.5-1.5mm² A.W.G.:(22-16) Max.current:Imax=19A |
|
RHB1.25-5S |
5 |
#10 |
5.3 |
8.0 |
7.0 |
30 |
|||||||
|
RHB1.25-6 |
6 |
1/4" |
6.4 |
11.6 |
11.2 |
36 |
|||||||
|
RHB1.25-8 |
8 |
5/16” |
8.4 |
||||||||||
|
RHB1.25-10 |
10 |
3/8" |
10.5 |
13.6 |
13.9 |
40 |
|||||||
|
RHB1.25-12 |
12 |
1/2" |
13.0 |
19.2 |
16.6 |
45 |
500 |
||||||
|
RHB2-4S |
4 |
#8 |
4.3 |
6.6 |
6.3 |
28 |
18 |
2.3 |
5.8 |
0.7 0.8 |
1000 |
Blue |
Wire range:1.5-2.5mm² A.W.G.:(16-14) Max.current:Imax=27A |
|
RHB2-5S |
5 |
#10 |
5.3 |
8.5 |
7.5 |
29 |
|||||||
|
RHB2-6 |
6 |
1/4" |
6.4 |
12.0 |
11.0 |
34 |
|||||||
|
RHB2-8 |
8 |
5/16" |
8.4 |
12.0 |
11.0 |
34 |
|||||||
|
RHB2-10 |
10 |
3/8" |
10.5 |
13.6 |
13.9 |
38 |
|||||||
|
RHB2-12 |
12 |
1/2" |
13.0 |
19.2 |
16.6 |
42 |
500 |
||||||
|
RHB5.5-4S |
4 |
#8 |
4.3 |
9.5 |
8.3 |
34 |
20 |
3.4 |
6.8 |
1.0 |
500 |
Yellow |
Wire range:4-6mm² A.W.G.:(12-10) Max.current:Imax=48A |
|
RHB5.5-5 |
5 |
#10 |
5.3 |
||||||||||
|
RHB5.5-6 |
6 |
1/4" |
6.4 |
12.0 |
10.5 |
37 |
|||||||
|
RHB5.5-8 |
8 |
5/16" |
8.4 |
15.0 |
13.5 |
41 |
|||||||
|
RHB5.5-10 |
10 |
3/8 |
10.5 |
||||||||||
|
RHB5.5-12 |
12 |
1/2" |
13.0 |
19.2 |
16.0 |
46 |
|||||||
