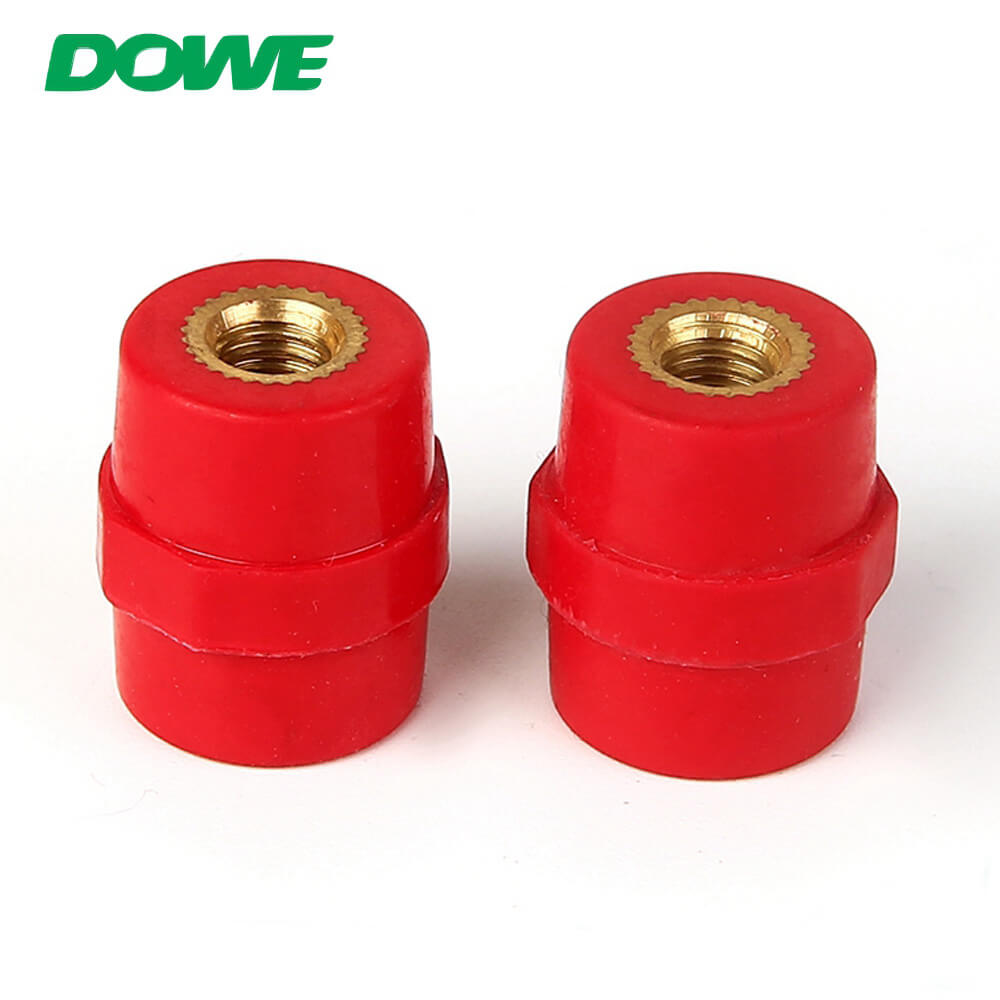

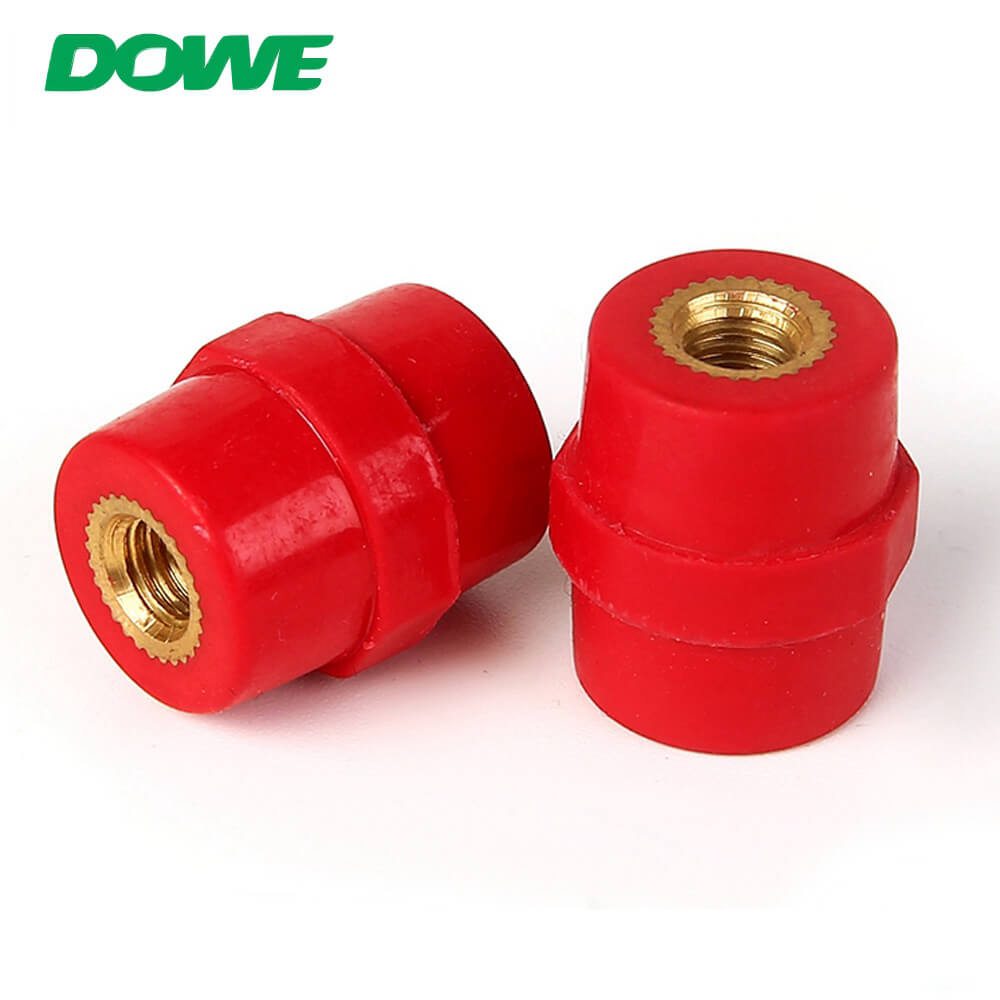

Small Insulator SM20 DB20 Electrical Post Insulators Low Voltage Standoff Support Insulator Price
SM Busbar Insulator SM busbar insulator is drum,made of DMC,used for low voltage application(660V-4500V),such as distribution box,switchgear,inverter and green power and so on. CE,SGS,ROHS certificate
- Model:
- SM20
- Voltage:
- 660V-4500V
- Height:
- 20mm
- Diameter:
- 17mm
- Screw:
- M4/M5/M6
- Material:
- DMC/BMC
- Torgue strength:
- 5N
- Centil strength:
- 2000N
- MOQ:
- 2 pcs
- Certificate:
- CE，REACH，ELV，SGS
SM Busbar Insulator
SM busbar insulator is drum,made of DMC,used for low voltage application(660V-4500V),such as distribution box,switchgear,inverter and green power and so on.
CE,SGS,ROHS certificate for drum insulator.
Material / Materiale：
-Thread Insert / Inserto Filettato :
Steel With Zn Coating
Brass
Steel Coating Brass
-DMC (Doug Moulding Compound)
-SMC (Sheet Moulding Compound)
Colour / Colore :Red
Working Temperature / Temperatura d’esercizio : 40℃～140℃
Flammability / Autoestinguenza:V0

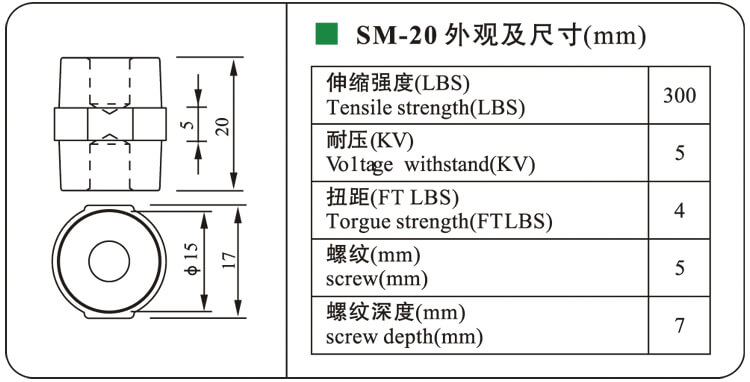

All dimensions are in mm /Tutte le quote sono in mm
Please confirm screw when order busbar insulator.Accepting OEM.
Application：
Low voltage busbar insulator are mainly used in low voltage power distribution cabinets, frequency converters, switchgear and other products.

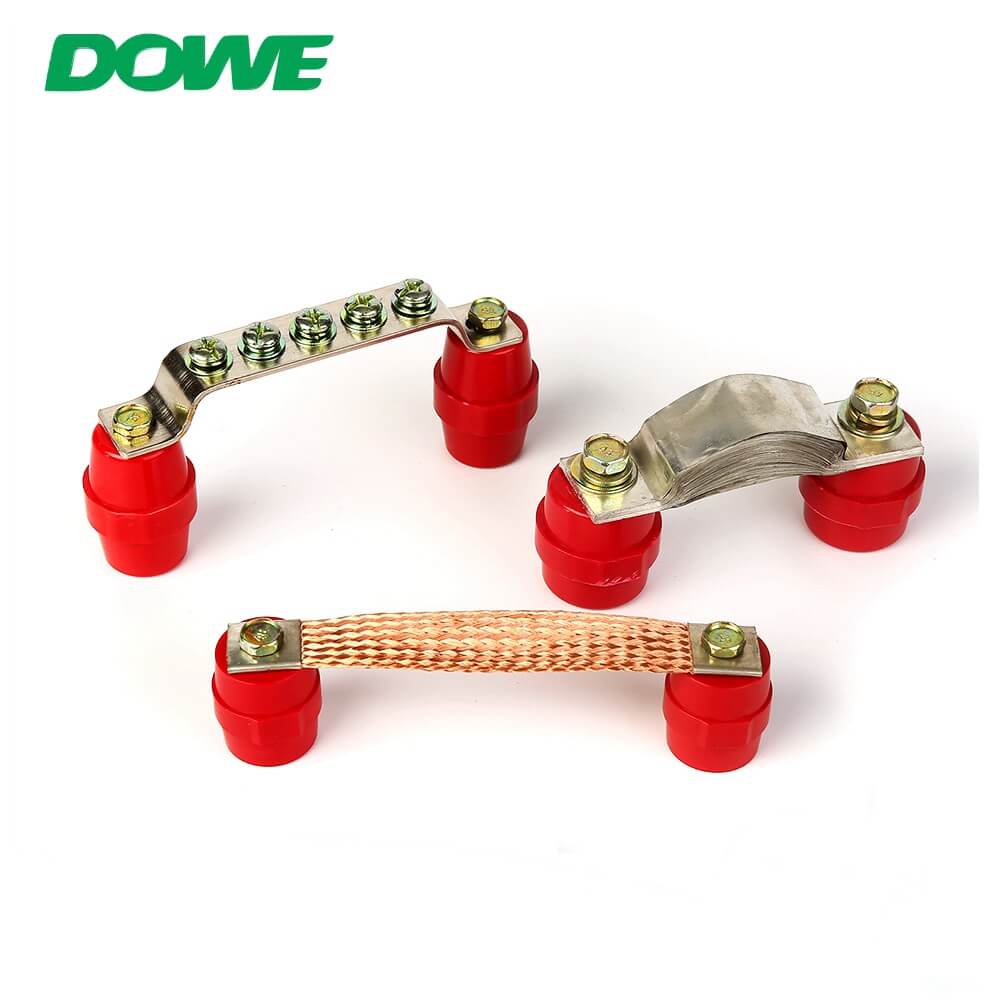

By connecting the busbar support copper, it plays a role of fixing, supporting and insulating.
Busbar support insulator has excellent insulation performance, high strength, high temperature resistance, reliable safety performance, and is a good choice for fixed busbar of low-voltage power distribution cabinets.
Our service
| Delivery | By express/By sea/By air/By land transportation |
| Supply | 5000pcs/week |
| Sample | The seller provides 2 samples for free, and the buyer pays the freight |
| Packing | By carton |
