SEP Busbar Insulator

SEP busbar insulator is hexagonal，ROHS,UL94 V0,made of DMC,used for low voltage application(660V-4500V),such as distribution box,switchgear,inverter and green power and so on.
CE,SGS,ROHS certificate for drum insulator.

Material / Materiale：

-Thread Insert / Inserto Filettato :
Steel With Zn Coating
Brass
-DMC (Doug Moulding Compound)
-SMC (Sheet Moulding Compound)
Colour / Colore :Red
Working Temperature / Temperatura d’esercizio : 40℃～140℃
Flammability / Autoestinguenza:V0

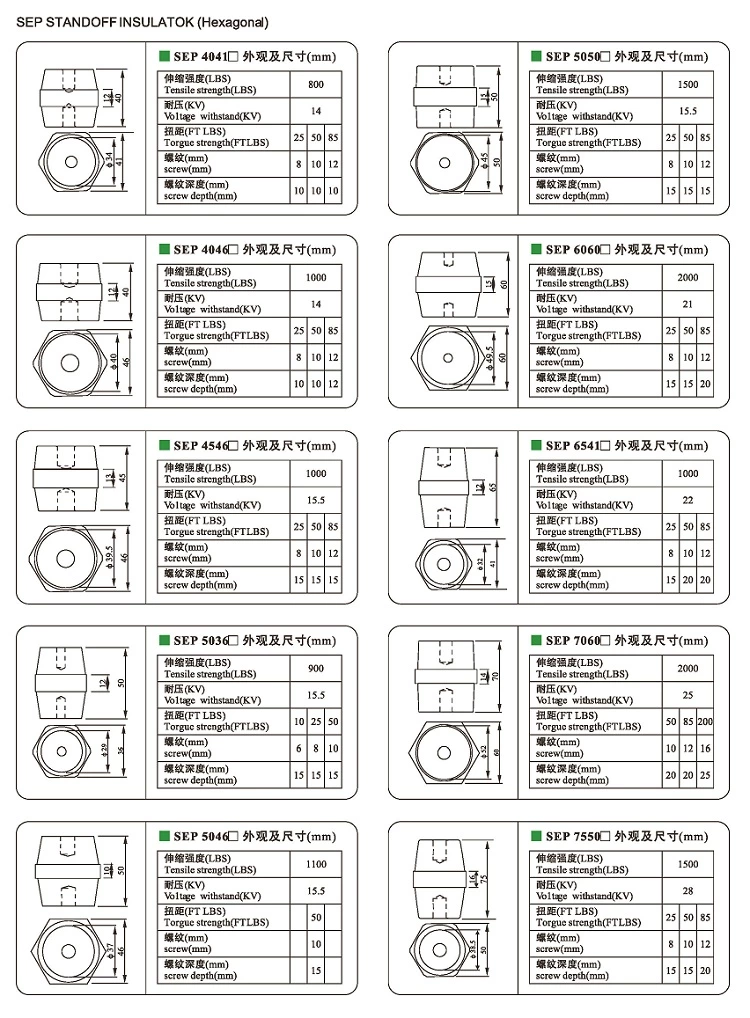

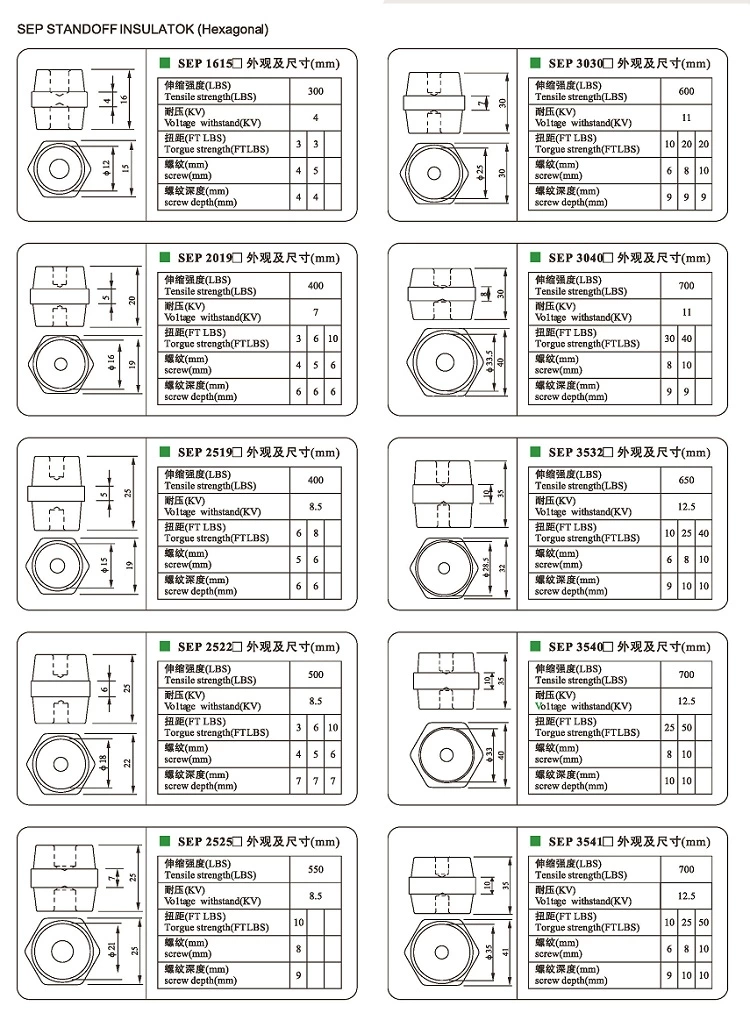

All dimensions are in mm /Tutte le quote sono in mm

Please confirm screw when order busbar insulator.Accepting OEM.

Application：

Low voltage busbar insulator are mainly used in low voltage power distribution cabinets, frequency converters, switchgear and other products.
By connecting the busbar support copper, it plays a role of fixing, supporting and insulating.
Busbar support insulator has excellent insulation performance, high strength, high temperature resistance, reliable safety performance, and is a good choice for fixed busbar of low-voltage power distribution cabinets.
