DMC SMC SB Copper 25 Standoff Bus Bar Insulator Red Resin Enhanced Water Resistant

OEM service: 1、Color: support red ,brown or other customsized 2、Insert: support brass,steel or other 3、Model: support OEM model
Model:
SB 30X50
Voltage:
660V-4500V
Height:
50
Diameter:
30
Screw:
M8
Material:
DMC BMC
MOQ:
500PCS
Certificate:
CE,RoHS,SGS,REACH

DMC SMC SB Copper 25 Standoff Bus Bar Insulator Red Resin Enhanced Water Resistant



SB Busbar Insulator

SB busbar insulator is hex round,ROHS,UL94 V0,made of DMC,used for low voltage application(660V-4500V),such as distribution box,switchgear,inverter and green power and so on.
CE,SGS,ROHS certificate for drum insulator.



Material / Materiale:

-Thread Insert / Inserto Filettato :
Steel With Zn Coating
Brass
-DMC (Doug Moulding Compound)
-SMC (Sheet Moulding Compound)
Colour / Colore :Red
Working Temperature / Temperatura d’esercizio : 40℃~140℃
Flammability / Autoestinguenza:V0

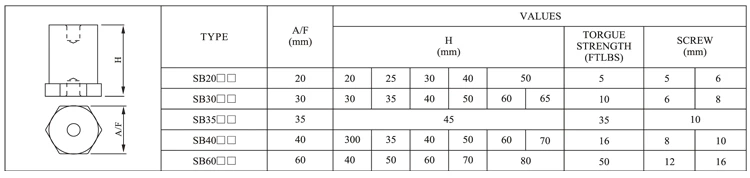

All dimensions are in mm /Tutte le quote sono in mm



Please confirm screw when order busbar insulator.Accepting OEM.



Application:

Low voltage busbar insulator are mainly used in low voltage power distribution cabinets, frequency converters, switchgear and other products.
By connecting the busbar support copper, it plays a role of fixing, supporting and insulating.
Busbar support insulator has excellent insulation performance, high strength, high temperature resistance, reliable safety performance, and is a good choice for fixed busbar of low-voltage power distribution cabinets.



Our service

Delivery

By express/By sea/By air/By land transportation

Supply

5000pcs/week

Sample

The seller provides 2 samples for free, and the buyer pays the freight

Packing

By carton
