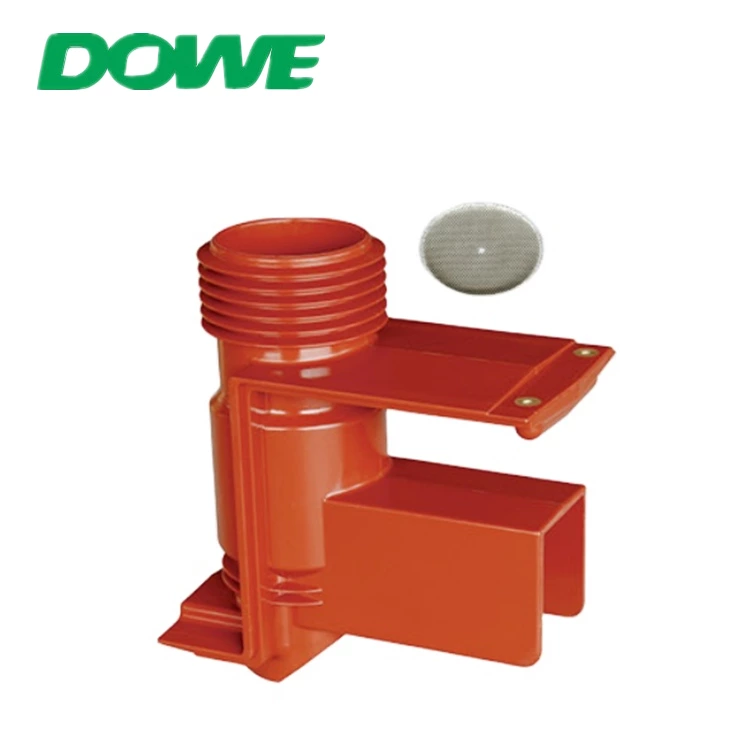

DOWE CH3-35Q/660 High Voltage Insulated Epoxy Resin Shielding Contact Box For Ac Movable Metal-clad Enclosed Switch Gear
OEM service:
1、Color: support red ,brown or other customsized
2、Insert: support brass,steel or other
3、Model: support OEM mode
- Model:
- CH3-35KV /660(two-way)
- Voltage:
- 35KV
- Height:
- 660mm
- Material:
- Epoxy resin
- MOQ:
- 2 pieces
- Certificate:
- CE,ROHS,REACH,SGS
Insulation Contact Box Description
The contact box product uses epoxy resin material with excellent insulation performance, and is injection molded using the static mixed APG process commonly used in the market. It uses high-quality pressure-resistant, partial discharge and other testing equipment to strictly control the product quality in accordance with national standards.
1. Material: epoxy resin
2. Application: KYN61C-40.5KV Indoor HV switchgear fittings
3. Certificate: CE
4. Reliable installation, achieve five preventation requirement.
5. More than 10 years experience for manufacturing in this line
6. Most competitive prices with best quality, promptly delivery
| Product name | Contact box |
| Brand name | DUWAI |
| Place of origin | Zhejiang Province, China |
| Material | Epoxy resin |
| Model | CH3-35KV /660(two-way) |
| Voltage | 35KV |
| Application | High voltage |
| Customized | OEM,ODM |
| Certificate | CE,ROHS,REACH |
