DOWE 10KV High Voltage Bushing Insulator Composite High Voltage Transformer Epoxy Insulated Bushing Through Wall Bushing
OEM service:
1、Color: support red ,brown or other customsized
2、Insert: support brass,steel or other
3、Model: support OEM mode
- Model:

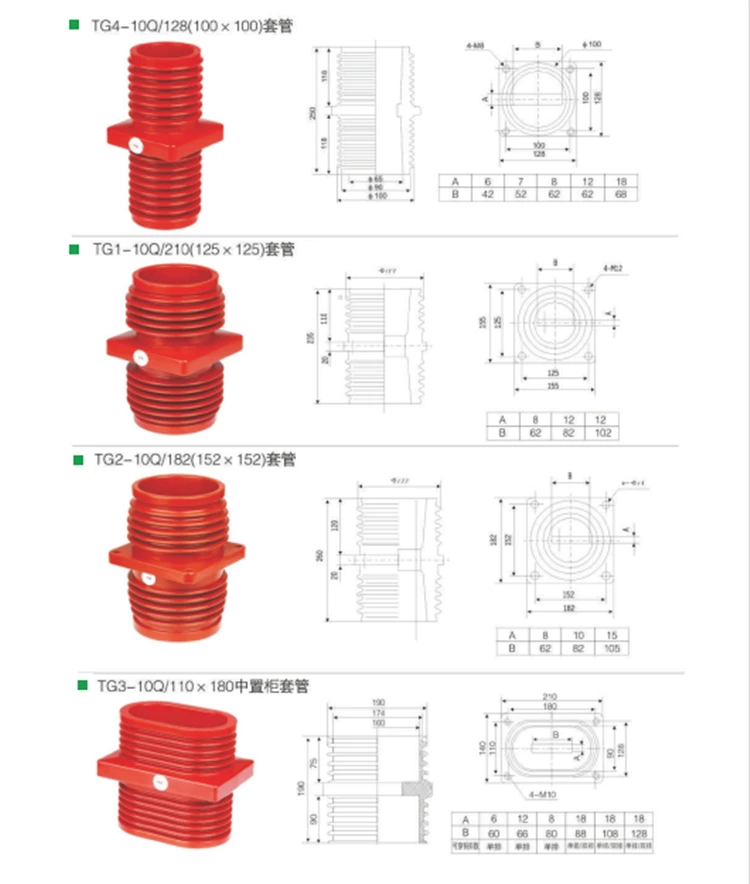

- TG4-10Q/128(100*100)
- Height:
- 250mm
- Material:
- BMC/DMS/SMC/Epoxy resin
- MOQ:
- 2 pieces
- Certificate:
- CE/SGS/ROHS/REACH
Insulation Bushing Description
1. The product adopts epoxy resin material. It gains high level of insulation, intensity and stability.
2. Bushing series is used for insulation and connection transition of completes with rated voltage of 12KV, 24kv and 35KV.
3. Epoxy resin vacuum casting, the APG epoxy resin pressure gelatin, the liquid silica gel formation, we always supply the best quality products.
4. It can be detected by X-ray instrument, bureau put instrument, thermal Cycle Test Machine.
5 It provides different specifications based on the size of electric current for the user’s choice, and sold well both at home and abroad.
| Product name | Insulator Bushing |
| Model | TG4-10Q/128(100*100) |
| Height | 250mm |
| Material | Epoxy resin |
| Insert | Brass/Steel |
| Torque Strength | >8N.m |
| Customized | OEM,ODM |
| Certificate | CE,ROHS,REACH |
