Electrical Insulator DMC Cylindrical Insulators Manufacturers MNS Epoxy Resin Insulator Support

OEM service: 1、Color: support red ,brown or other customsized 2、Insert: support brass,steel or other 3、Model: support OEM model

Model:: MNS4050
Voltage:: 660V-4500V
Height:: 50mm
Diameter:: 40mm
Screw:: M6/M8/M10
Material:: BMC/DMC
Torgue strength:: 28N
Centil strength:: 12000N
MOQ:: 2 pcs
Certificate:: CE，REACH，ELV，SGS

Enquiry

Electrical Insulator DMC Cylindrical Insulators Manufacturers MNS Epoxy Resin Insulator Support

Description
More Related

Electrical Insulator DMC Cylindrical Insulators Manufacturers MNS Epoxy Resin Insulator Support

MNS Busbar Insulator

MNS busbar insulator is made of DMC,used for low voltage application(660V-4500V),such as distribution box,switchgear,inverter and green power and so on.
CE,SGS,ROHS certificate for drum insulator.

Material / Materiale：

-Thread Insert / Inserto Filettato :
Steel With Zn Coating
Brass
-DMC (Doug Moulding Compound)
-SMC (Sheet Moulding Compound)
Colour / Colore :Red
Working Temperature / Temperatura d’esercizio : 40℃～140℃
Flammability / Autoestinguenza:V0

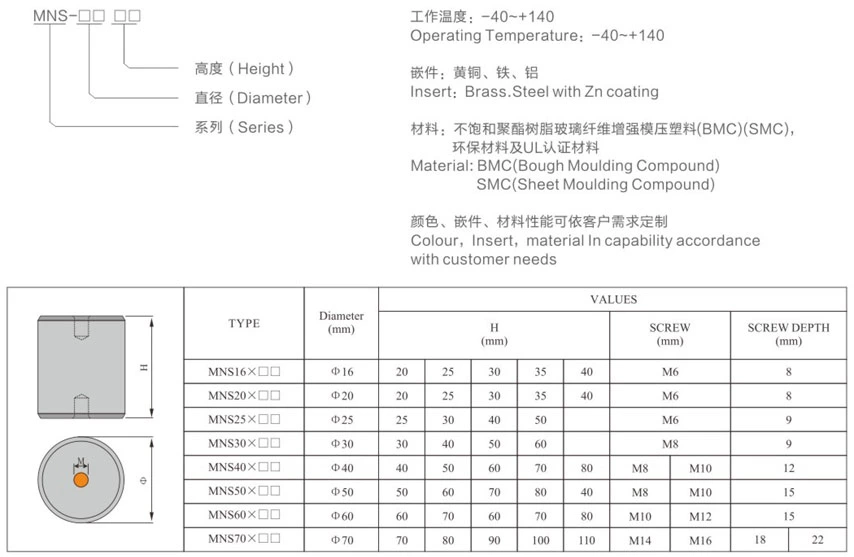

All dimensions are in mm /Tutte le quote sono in mm

Please confirm screw when order busbar insulator.Accepting OEM.

Application：

Low voltage busbar insulator are mainly used in low voltage power distribution cabinets, frequency converters, switchgear and other products.
By connecting the busbar support copper, it plays a role of fixing, supporting and insulating.
Busbar support insulator has excellent insulation performance, high strength, high temperature resistance, reliable safety performance, and is a good choice for fixed busbar of low-voltage power distribution cabinets.

Our service

Delivery	By express/By sea/By air/By land transportation
Supply	5000pcs/week
Sample	The seller provides 2 samples for free, and the buyer pays the freight
Packing	By carton
