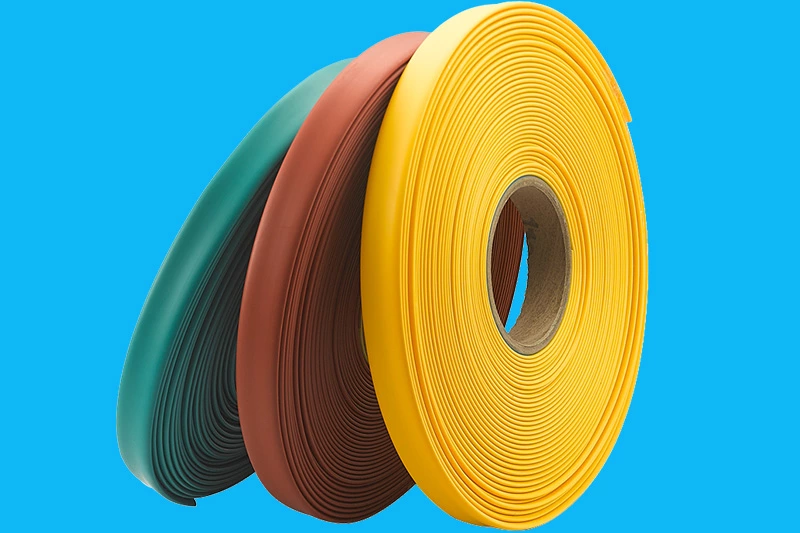

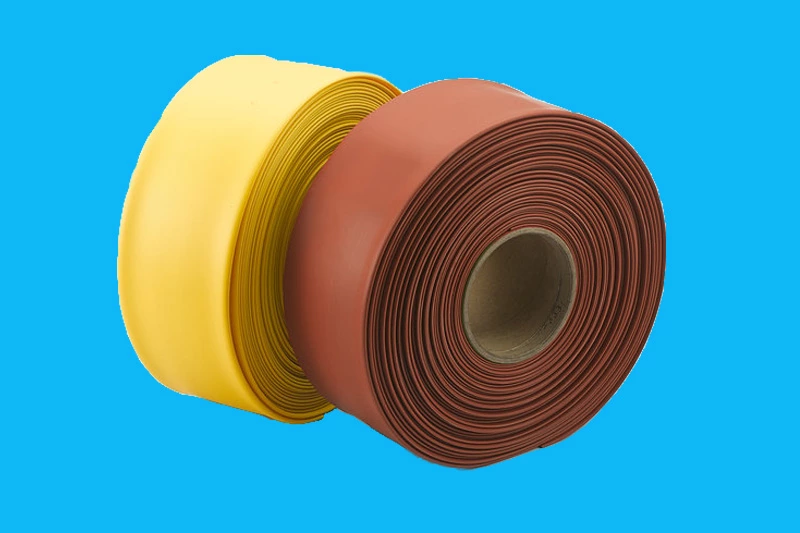

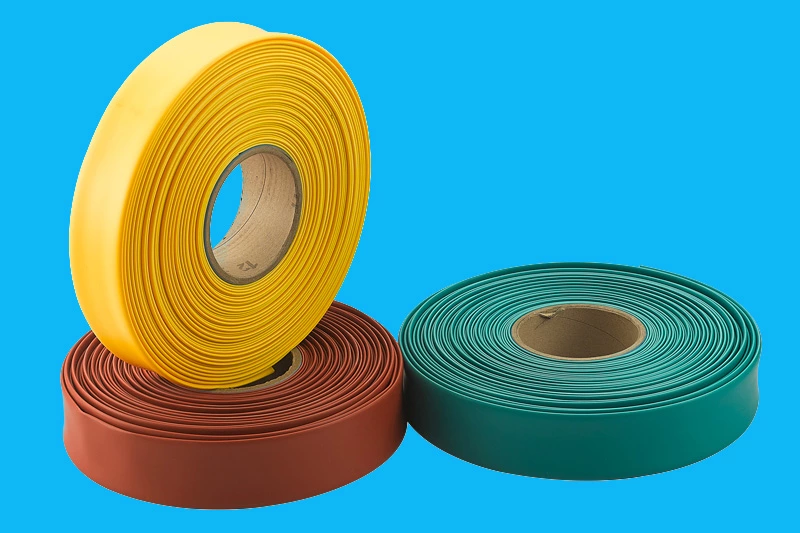

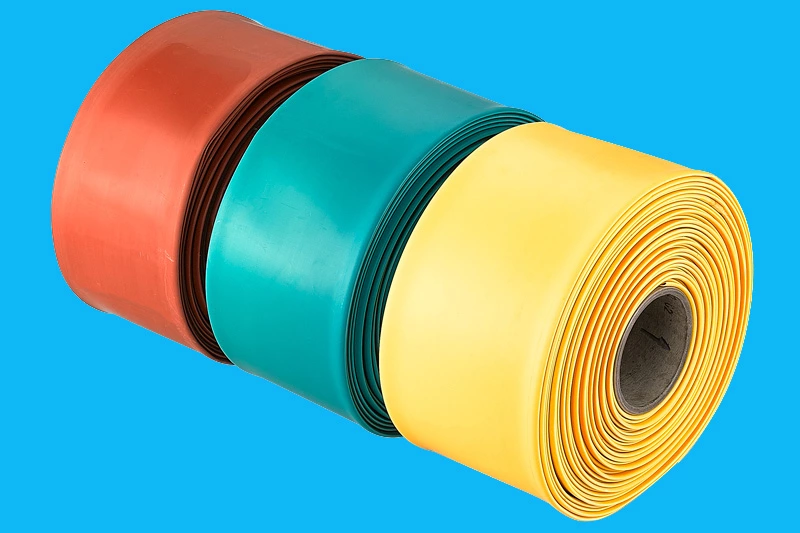

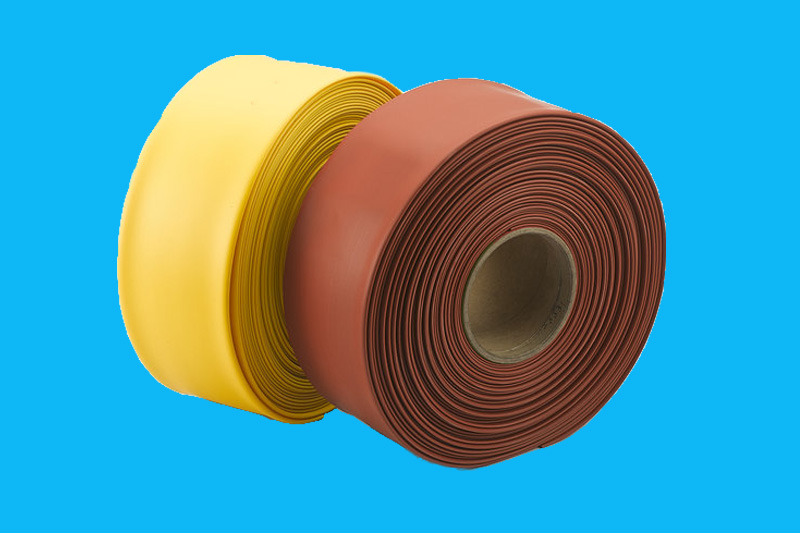

DUWAI HB1.5 - Busbar Insulating Heat Shrink Tubing (Withstand Voltage Up To 10kV)
APPLICATIONS
HB1.5 is made of polyolefin. The flexible material make it very easy for the operator to process bent busbars. The environmental friendly polyolefin material can provide reliable insulation protection up to 10 kV, avoiding the possibility of flashovers and accidental contact. The use of HB1.5 to cover busbars can reduce the space design of the switchgear and lowers the cost.
APPROVALS / SPECIFICATIONS
IEC60060-1
OPERATING TEMPERATURE RANGE
- Continuous operating temperature: -45℃ ~ 105℃
- Minimum shrink temperature: 50℃
- Minimum full recovery temperature: 125˚C
COLOR
Standard color: red, (Busbar width will vary depending on the design of the manufacturer. The recommended size is for reference only.)
- Shrink ratio: 2.5:1
- Flexibility and corrosion resistance
- Excellent chemical resistance and insulation performance
The 10KV high-voltage insulated busbar heat shrinkable tube is made of environmentally friendly polyolefin heat shrinkable material cross-linked by high-energy electron beam bombardment. It has excellent flame retardancy, insulation and thermal stability, and can provide high insulation strength and electrical resistance. Carbon trace performance. It limits environmentally harmful substances such as PBB, PBBD, PBBE and heavy metals. It does not produce toxic gases and harmful substances when burned. It is suitable for anti-corrosion and insulation protection of busbars and electrical equipment. It has passed the certification of Wuhan High School and West High School. Products are widely used in the power industry, communications, automobiles, ships, aircraft manufacturing and other fields.
|
Performance parameters of 10KV high voltage insulated busbar heat shrinkable tube |
||
|
Test items |
Test Methods |
Test Data |
|
Tensile Strength |
GB/T 1040 130℃*168H |
≥10.4Mpa before aging |
|
>13.5MPa After aging |
||
|
Power frequency voltage |
GB/T 1408.1 |
≥42KV.1min |
|
Shore hardness A |
GB 2401 |
≤90 |
|
Breakdown strength |
GB/T 1408.1 |
≥25KV/mm |
|
Volume resistivity |
GB/T 1410 |
≥1014Ω.cm |
|
Thermal shock resistance |
160℃*4H |
Not sticky or cracking |
|
Flame retardancy |
GD/T 2406 |
Pass |
|
Copper stability |
ASTM D 2671 |
Pass |
|
Specification table of 10KV high voltage insulated busbar heat shrinkable tube |
||||||
|
Specifications (mm) |
Before shrinkage (mm) |
After shrinkage (mm) |
Applicable busbar width |
Packing |
||
|
the inside diameter of |
wall thickness |
the inside diameter of |
wall thickness |
meters/roll |
||
|
10kV 15/6 |
≥15 |
1 |
≤6.0 |
2.5 |
15/12 |
25 |
|
10kV 20/8 |
≥20 |
1 |
≤8.0 |
2.5 |
20/15 |
25 |
|
10kV 25/10 |
≥25 |
1 |
≤10.0 |
2.5 |
25/18 |
25 |
|
10kV 30/12 |
≥30 |
1 |
≤12.0 |
2.5 |
30/20 |
25 |
|
10kV 40/16 |
≥40 |
1.2 |
≤16.0 |
2.8 |
40/30 |
25 |
|
10kV 50/20 |
≥50 |
1.2 |
≤20.0 |
2.8 |
50/35 |
25 |
|
10kV 60/24 |
≥60 |
1.2 |
≤24.0 |
2.8 |
60/45 |
25 |
|
10kV 70/28 |
≥70 |
1.2 |
≤28.0 |
2.8 |
70/50 |
25 |
|
10kV 80/32 |
≥80 |
1.2 |
≤32.0 |
2.8 |
80/55 |
25 |
|
10kV 100/40 |
≥100 |
1.2 |
≤40.0 |
2.8 |
100/75 |
25 |
|
10kV 120/48 |
≥120 |
1.2 |
≤48.0 |
2.8 |
120/85 |
25 |
|
10kV 150/60 |
≥150 |
1.2 |
≤60.0 |
2.8 |
150/105 |
25 |
|
10kV 180/72 |
≥180 |
1.2 |
≤72.0 |
2.8 |
180/120 |
25 |
