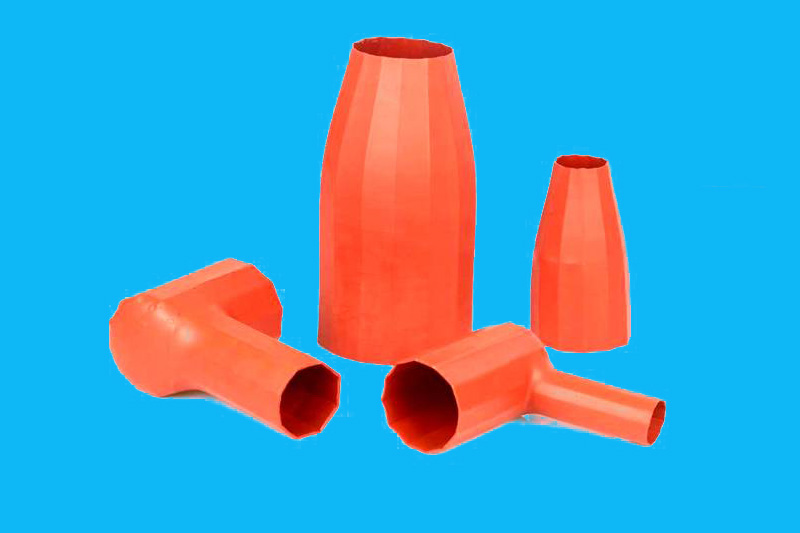

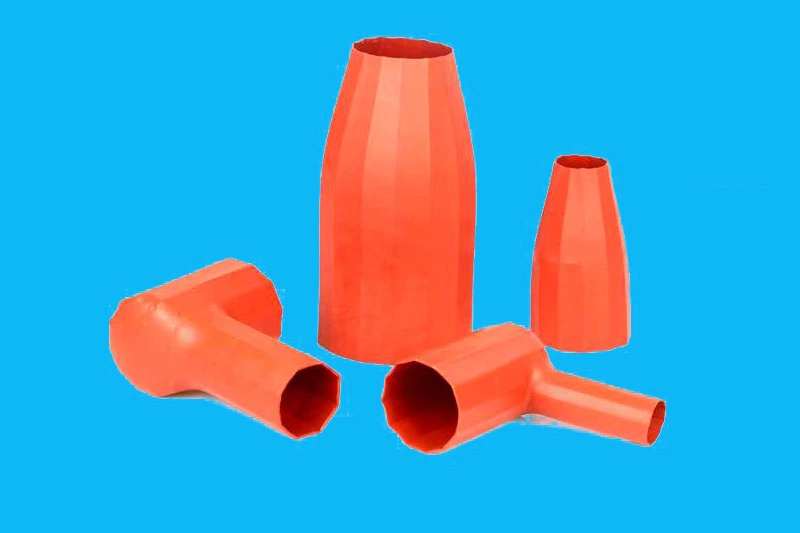

Heat shrinkable cable insulation boots

Heat shrinkable insulating boots are suitable for the insulation protection of the incoming and outgoing line terminals of the ring network switch cabinet and the cable connections, and are also suitable for the insulation protection of the terminal connections of various cable distribution boxes and box-type substation devices.

Operating Temperature:
-55℃ to +110℃
Minimum Shrinkage Temperature:
120℃
Standard Color:
iron red
Withstand Voltage Level:
1-35KV
Features
UV resistant, flame retardant

    Heat shrinkable insulating boots are suitable for the insulation protection of the incoming and outgoing line terminals of the ring network switch cabinet and the cable connections. They are also suitable for the insulation protection of the terminal connections of various cable distribution boxes and box-type substation devices. This product has excellent insulation properties. , flame retardancy, thermal stability, heat dissipation, softness, no cracking and resistance to electrical carbon marks and other excellent properties. It also has the characteristics of fast shrinkage, simple operation, safety and reliability, etc. There are two types of straight-through and corner types to choose from. .

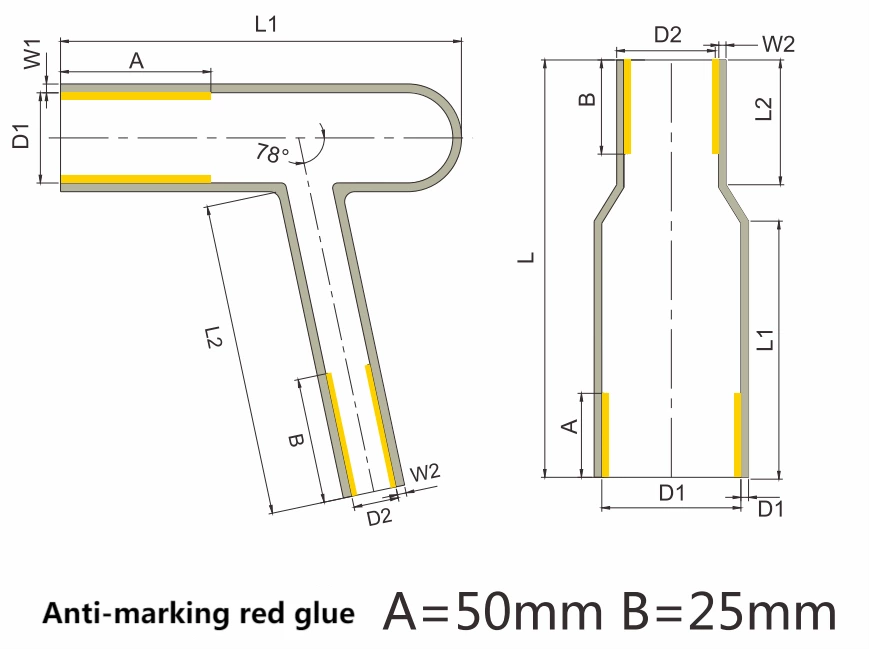

Heat shrinkable insulating boots specification and size table (please refer to the corresponding dimensions according to the diagram above)



Before shrinkage (mm)

After shrinkage (mm)

type

model

D1 Min

D2  Min

D1 Max

D2 Max

L1 Nom

L2   ±10%

L   ±10%

W1  ±10%

W2  ±10%

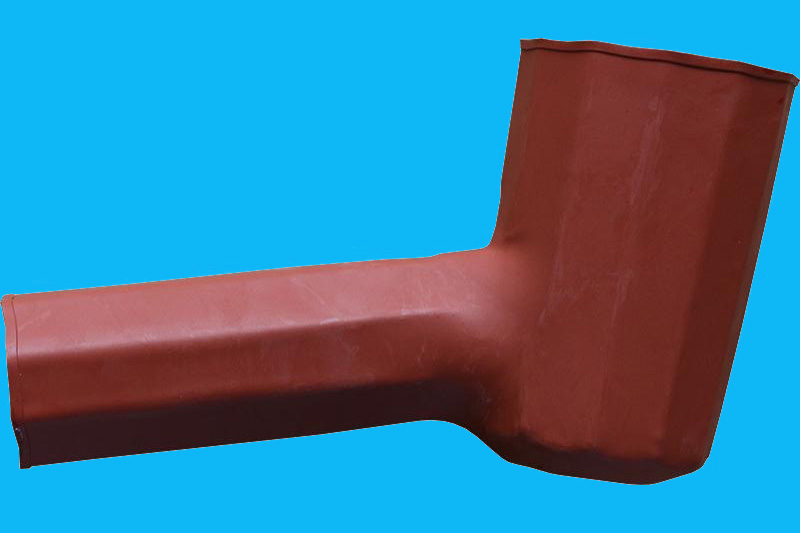

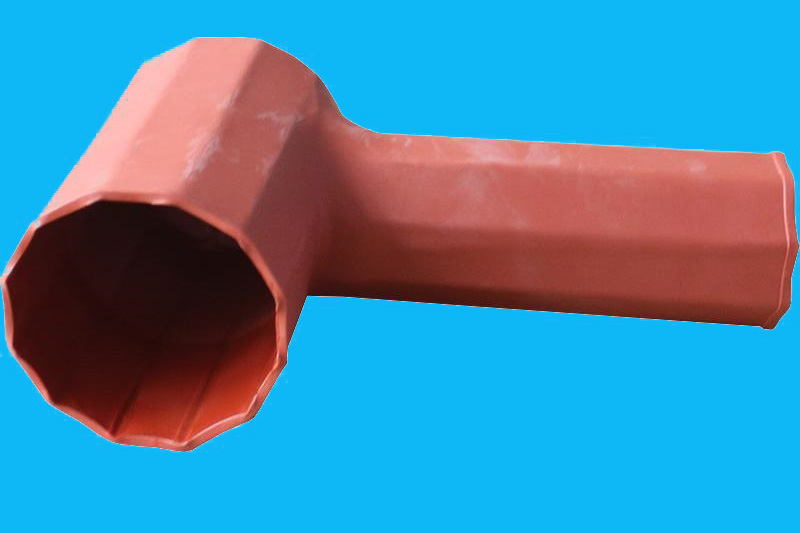

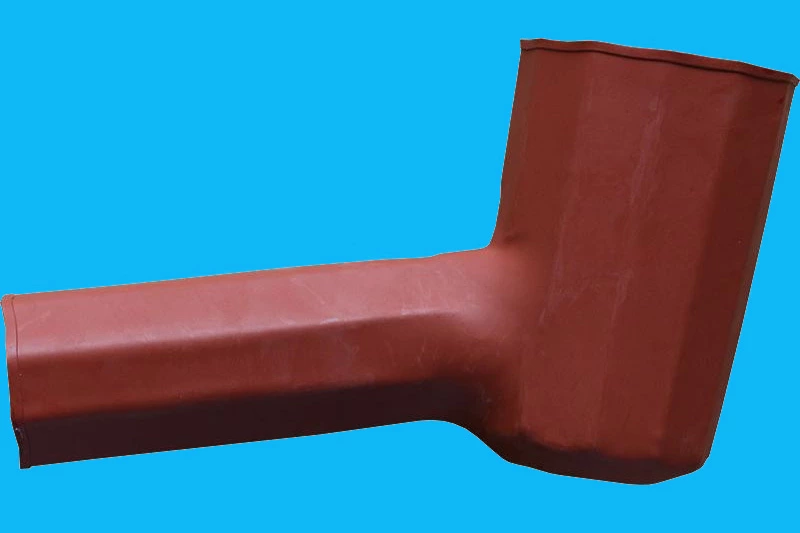

Corner type

RSJY110

80

35

36

18

170

125

-

4.2

3.5



RSJY120

80

50

36

18

170

125

-

3.8

3.5



RSJY130

80

50

36

27

160

140

-

3.8

3.5



RSJY140

95

70

38

28

160

140

-

4.2

4.8



RSJY150

145

68

72

34

215

140

-

4.2

4.2

Straight-through type

RSJY160

80

34

32

19

145

75

220

3.2

3.2



RSJY170

80

58

32

19

145

75

220

3.2

3.2



RSJY180

140

90

65

33

145

75

220

4

4
