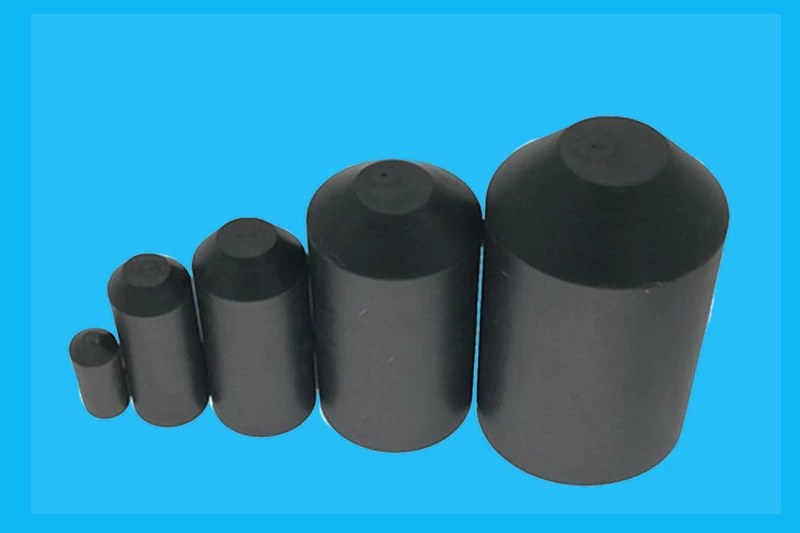

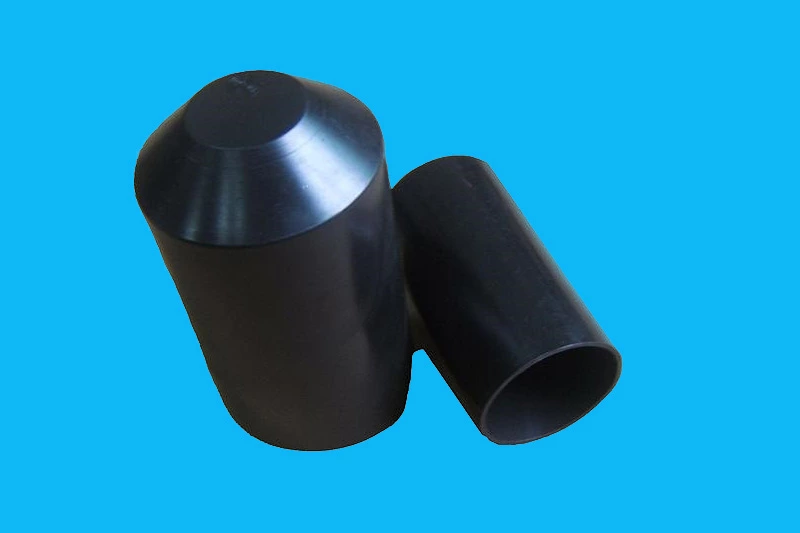

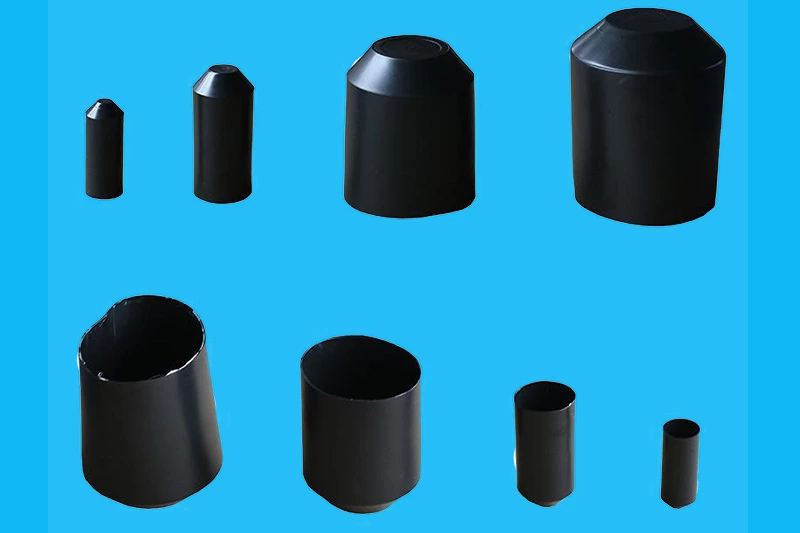

DUWAI PE black red green yellow heat shrink cable end cap Cable connector protective cover
APPLICATIONS

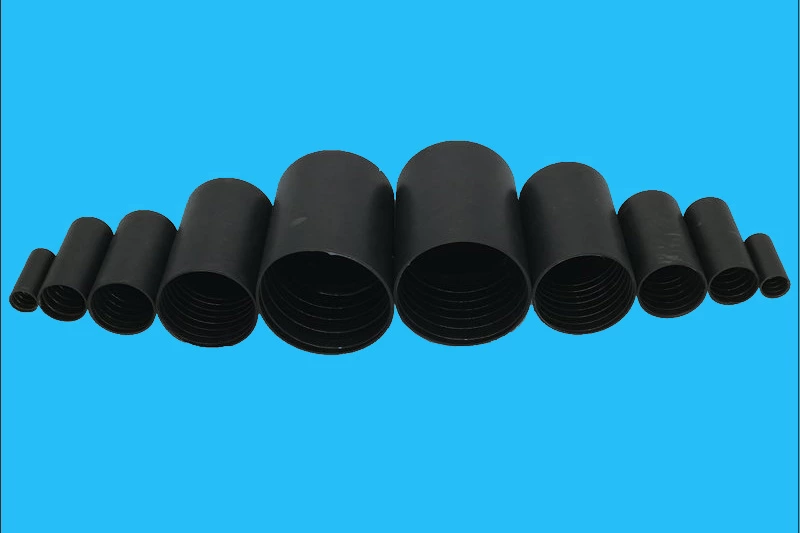

It is injection-molded with polyolefin and has UV and abrasion resistance. Hot melt adhesive is coated in a spiral shape inside the tube, providing reliable waterproof and insulation protection for the cut surface of cables or air-filled cables.
OPERATING TEMPERATURE RANGE
- Continuous operating temperature: -55℃ ~ 110℃
- Minimum shrink temperature: 80℃
- Full recovery temperature: Above 120˚C
COLOR
Standard color: black (End cap with valve is available on request.)
Heat shrinkable cable caps provide cost-effective sealing and waterproofing for power and control cable terminals. The spiral hot melt adhesive on the inner layer of the cap prevents moisture from entering after shrinkage. Suitable for outdoor and underground protection of PVC, lead, or XLPE cables. This product also has the functions of antioxidant, ozone, ultraviolet radiation, etc. Used for terminal protection sealing of various types of cables.
|
Specifications(All dimensions are in mm) |
|||
|
Standard Lenght (diameter*lenght) |
Extended Lenght (diameter*lenght) |
Overlenght (diameter*lenght) |
Diameter range of applicable cable |
|
8*25 |
|
|
5-7 |
|
10*30 |
|
|
6-9 |
|
13*30 |
13*50 |
|
7-11 |
|
15*40 |
15*60 |
15*100 |
8-13 |
|
18*40 |
18*60 |
18*100 |
11-15 |
|
20*40 |
20*60 |
20*100 |
12-17 |
|
23*40 |
23*60 |
23*100 |
15-17 |
|
25*40 |
25*60 |
25*100 |
16-22 |
|
28*40 |
28*60 |
|
17-25 |
|
30*40 |
30*60 |
30*90 |
18-27 |
|
32*50 |
32*60 |
|
19-28 |
|
35*50 |
35*60 |
35*90 |
22-30 |
|
40*60 |
40*80 |
40*100 |
25-35 |
|
45*60 |
45*80 |
45*100 |
28-40 |
|
50*70 |
50*100 |
|
35-45 |
|
55*70 |
55*100 |
|
38-50 |
|
60*70 |
60*80 |
60*100 |
40-55 |
|
65*80 |
65*100 |
|
43-60 |
|
70*90 |
70*120 |
70*170 |
45-65 |
|
75*90 |
75*120 |
75*170 |
50-70 |
|
80*90 |
80*100 |
80*120 |
55-75 |
|
85*100 |
85*120 |
|
60-80 |
|
90*120 |
|
|
65-85 |
|
95*120 |
95*150 |
|
65-90 |
|
100*130 |
|
100*170 |
70-90 |
|
110*130 |
|
110*170 |
75-100 |
|
120*150 |
|
|
80-110 |
|
130*150 |
|
|
100-130 |
|
150*180 |
|
|
120-150 |
|
Specifications(All dimensions are in mm) |
|||
|
Sizes |
Inside diameter |
Length of coating(A) |
|
|
Minimum expanded as supplied(D) |
Maximum reecovered after heating(d) |
||
|
DWEC-20/8 |
20 |
8 |
20 |
|
DWEC-40/15 |
40 |
15 |
30 |
|
DWEC-55/25 |
55 |
25 |
35 |
|
DWEC-75/30 |
75 |
30 |
50 |
|
DWEC-100/45 |
100 |
45 |
50 |
|
DWEC-140/65 |
140 |
65 |
60 |
|
Specifications(All dimensions are in mm) |
|||||
|
Sizes |
Inside diameter |
Total lenght (L,±10%) |
Recovered wall thickness after heating (L,±5%) |
Diameter range of applicable cable |
|
|
Minimum expanded as supplied(D) |
Maximum recovered after heating(d) |
||||
|
DWEC-12/4 |
12 |
4 |
40 |
2.6 |
4-10 |
|
DWEC-14/5 |
14 |
5 |
45 |
2.2 |
5-12 |
|
DWEC-20/6 |
20 |
6 |
55 |
2.8 |
6-16 |
|
DWEC-25/8.5 |
25 |
8.5 |
68 |
2.8 |
8.5-20 |
|
DWEC-35/18 |
35 |
18 |
90 |
3.3 |
18-30 |
|
DWEC-40/20 |
40 |
20 |
90 |
3.3 |
20-35 |
|
DWEC-55/28 |
55 |
28 |
115 |
3.4 |
28-45 |
|
DWEC-75/40 |
75 |
40 |
125 |
3.8 |
40-65 |
|
DWEC-100/50 |
100 |
50 |
140 |
4.0 |
50-90 |
|
DWEC-120/70 |
120 |
70 |
155 |
4.0 |
70-110 |
|
DWEC-140/90 |
140 |
90 |
180 |
4.0 |
90-130 |
|
DWEC-200/110 |
200 |
110 |
270 |
4.2 |
110-180 |
|
DWEC-250/120 |
250 |
120 |
270 |
4.2 |
120-240 |
