DOWE BTR5 Copper V-clamp Fuse Rail Disconnector 3-Pole Vertical Fuse Rail Switch Disconnector Low-Voltage Fuse Base
The latest conjoined type switch safely closes three-phase circuits with a fuse handle, has a flame-retardant base (IP30), supports quick installation, and reduced wiring. It offers 100kA breaking force, operates at 1.3 times the rated current, and can include a fuse monitor, signal switch, and remote control module.
1. Conjoined type can be a three-phase closed off simultaneously
2. Operation safely. while fuse installed in the handle and it can be used as a contact blade directly.
3. It is beautiful and practical and the whole switch can be disassemblyed easily. and installed in the cabinet fastly.;
4. Wiring reduced make it easy to increase the loop and the utilization of the cabinet;
5. The resin glass fiber base (BMC-UP(GF15 ). FR/DMC-2).with flame retardant grade. and the enclosure rating up to IP30;
6. The latest product has highest usage in the market.;
7. The instantaneous breaking force is up to 100kA. and the operating capacity with a load can be up to 1.3 times of the rated current;
8. It can be with the fuse monitor. signal switch and a remote control module.
|

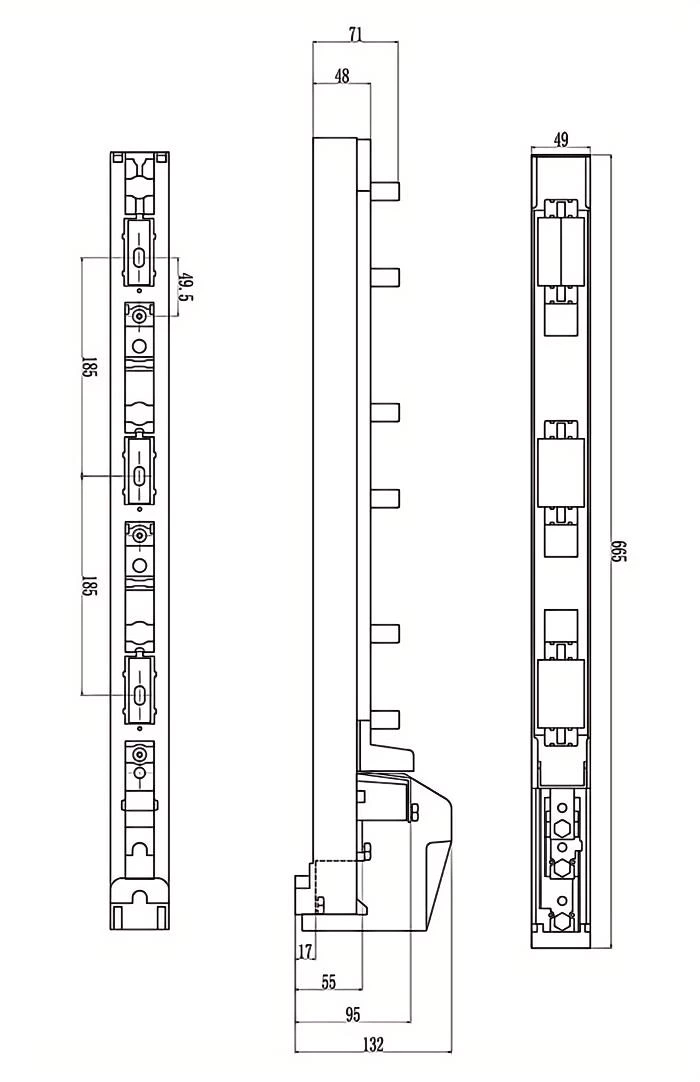

Type of Fuse Switch |
BTR5-250 |
BTR5-400 |
BTR5-630 |
|
Rated Voltage |
415, 500, 630V |
||
|
Rated Thermal Current(Ith) |
250A |
400A |
630A |
|
Rated Frequency |
50/60Hz |
50/60Hz |
50/60Hz |
|
Rated Insulation Voltage(Ui) |
1000V |
1000V |
1000V |
|
Rated Impulse Withstand Voltage(Uimp) |
10KV |
10KV |
10KV |
|
Degree of Protection |
IP30 |
||
|
Fuse Size |
1 |
2 |
3 |
|
Rated Voltae(Ue) |
415V,500V,690V |
415V,500V,690V |
415V,500V,690V |
|
Rated Working Current(le) |
250A,250A,200A |
400A,400A,350A |
630A,630A,500A |
|
Wire Specifications |
120mm2 |
240mm2 |
300mm2 |
|
The Special Connection Mode |
V-clamp |
||
|
The General Connection Mode |
Screw & Cable lug |
||
|
Installation of Busbar |
1. Punched rectangle busbar 2. Unpunched rectangle busbar 3. Other |
||
|
Fixed Way |
1. Screw 2. Hook 3. Other custom accessories |
||
