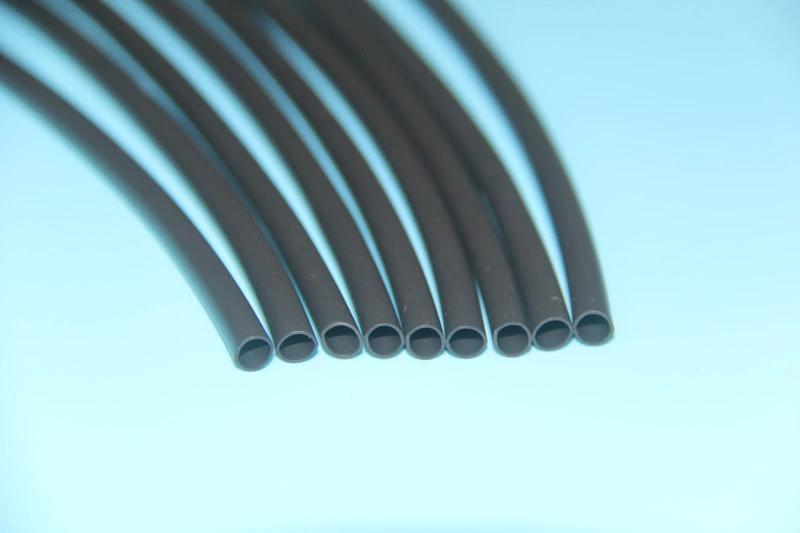

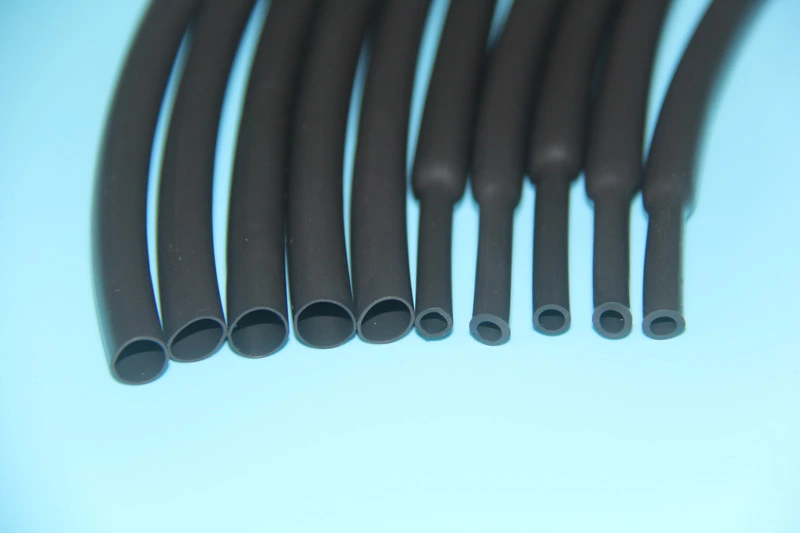

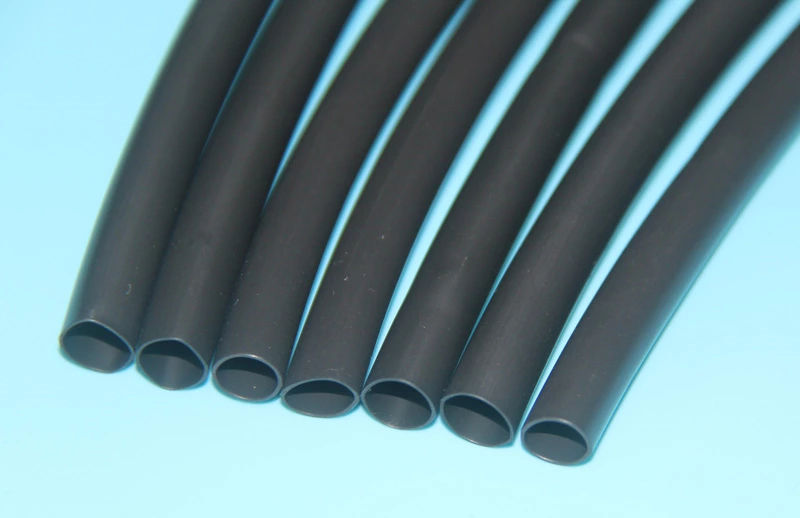

Fluorine rubber oil-resistant and high-temperature resistant heat shrinkable tube
Made of high-quality fluorine rubber, it is suitable for environments that require high temperature resistance, oil resistance, and chemical solvent resistance. It has excellent high temperature resistance, chemical corrosion resistance, and solvent resistance to prevent wire harnesses, cables, or covered components from being exposed to high temperatures or particularly harsh environments. protection from damage in the environment.
- Operating Temperature:
- -65℃ to +200℃
- Minimum Shrinkage Temperature:
- 220℃
- Shrink Ratio:
- 2:1
- Standard Color:
- Black
- Features
- Excellent wear resistance, solvent resistance and chemical corrosion resistance, excellent flame retardant properties
Made of high-quality fluorine rubber, it is suitable for environments that require high temperature resistance, oil resistance, and chemical solvent resistance. It has excellent high temperature resistance, chemical corrosion resistance, and solvent resistance to prevent wire harnesses, cables, or covered components from being exposed to high temperatures or particularly harsh environments. protection from damage in the environment. It can be used at high temperatures of 200℃ for a long time and is resistant to diesel, aviation fuel and high-temperature fluids. It can be used for the protection of military vehicles, high-speed trains, ship equipment or commercial cable terminals, separation joints, etc.
Made of high-quality fluorine-containing rubber polymer cross-linked by radiation, it has excellent high and low temperature resistance, chemical corrosion resistance and solvent resistance. It is suitable for commercial and military fields that require high temperature resistance, oil resistance and chemical solvent resistance to prevent wire harnesses and wires. Cables or covered components are protected from damage in high temperatures or particularly harsh environments.
Performance indicators of fluororubber oil-resistant and high-temperature heat shrinkable tube |
||
Test items |
Test Methods |
Test Data |
Operating temperature |
IEC 216 |
-75℃ to +200℃ |
Tensile Strength |
ASTM D 2671 |
Minimum 8.5Mpa |
Elongation at break |
ASTM D 2671 |
Minimum 250% |
Thermal aging elongation at break |
180℃,168 hours |
Minimum200% |
Thermal shock |
250℃, 1 hour |
No dripping, no cracks |
Volume resistivity |
UL 224 |
Minimum 109Ω.cm |
Flame retardancy |
VW-1 |
Passed, self-extinguishing within 15 seconds |
Specifications and models of 200℃ fluororubber oil-resistant and high-temperature heat shrinkable tubes |
|||||
Specifications (mm) |
Before shrinkage (mm) |
After shrinkage (mm) |
shape |
Packing |
|
the inside diameter of |
the inside diameter of |
wall thickness |
meters/roll |
||
200E 3.2/1.6 |
3.2 |
1.6 |
0.76 |
○ |
200 |
200E 4.8/2.4 |
4.8 |
2.4 |
0.89 |
○ |
100 |
200E 6.4/3.2 |
6.4 |
3.2 |
0.89 |
○ |
100 |
200E 9.5/4.8 |
9.5 |
4.8 |
0.89 |
- |
50 |
200E 12.7/6.4 |
12.7 |
6.4 |
0.89 |
- |
25 |
200E 19.1/9.5 |
19.1 |
9.5 |
1.07 |
- |
25 |
200E 25.4/12.7 |
25.4 |
12.7 |
1.25 |
- |
25 |
200E 38.1/19.12 |
38.1 |
19.1 |
1.4 |
- |
25 |
200E 50.8/25.4 |
50.8 |
25.4 |
1.65 |
- |
1 |
Note: "○" means round tube, "-" means flat tube, special length can be cut. |
