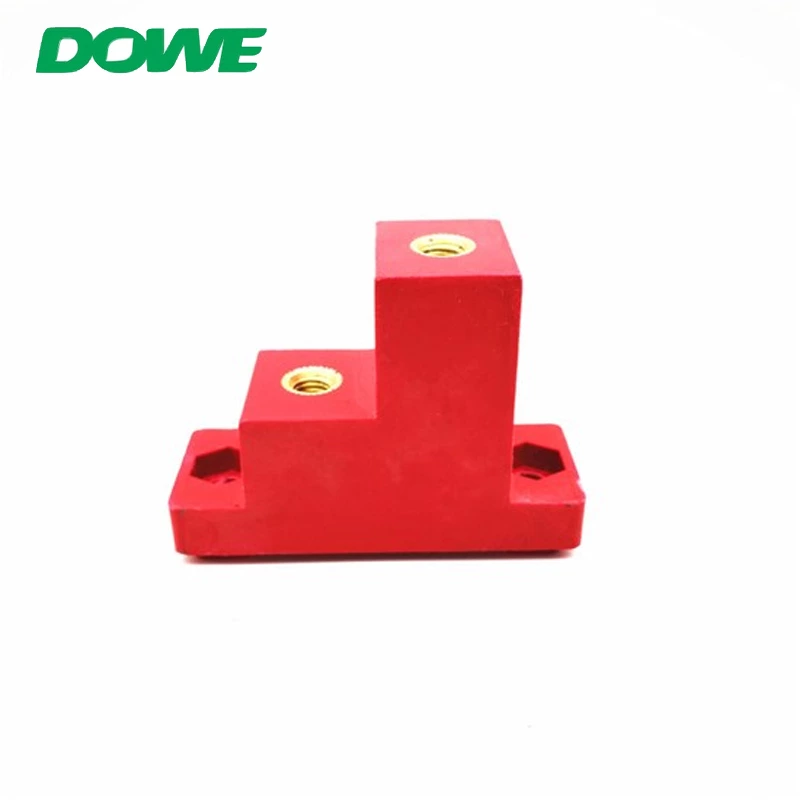

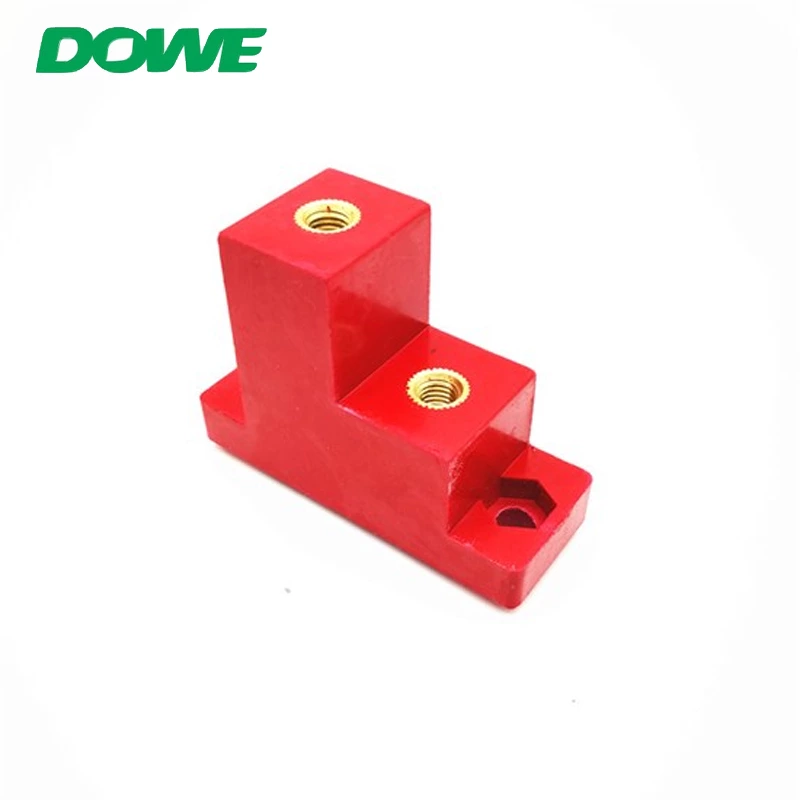

Step Busbar Support CT2-25

CT/CJ busbar support insulator is mainly used for support the busbar with different height in one equipment.
Popular used in distribution box,switchgear,inverter and green power.
CE,SGS,ROHS certificate for CT/CJ insulator

Material / Materiale：

-Thread Insert / Inserto Filettato :
Steel With Zn Coating
Brass
-DMC (Doug Moulding Compound)
-SMC (Sheet Moulding Compound)
Colour / Colore :Red
Working Temperature / Temperatura d’esercizio : 40℃～140℃
Flammability / Autoestinguenza:V0
All dimensions are in mm /Tutte le quote sono in mm
Length:80mm
Height:60mm
Step:3

Application：

Low voltage busbar insulator are mainly used in low voltage power distribution cabinets, frequency converters, switchgear and other products.
By connecting the busbar support copper, it plays a role of fixing, supporting and insulating.
Busbar support insulator has excellent insulation performance, high strength, high temperature resistance, reliable safety performance, and is a good choice for fixed busbar of low-voltage power distribution cabinets.
