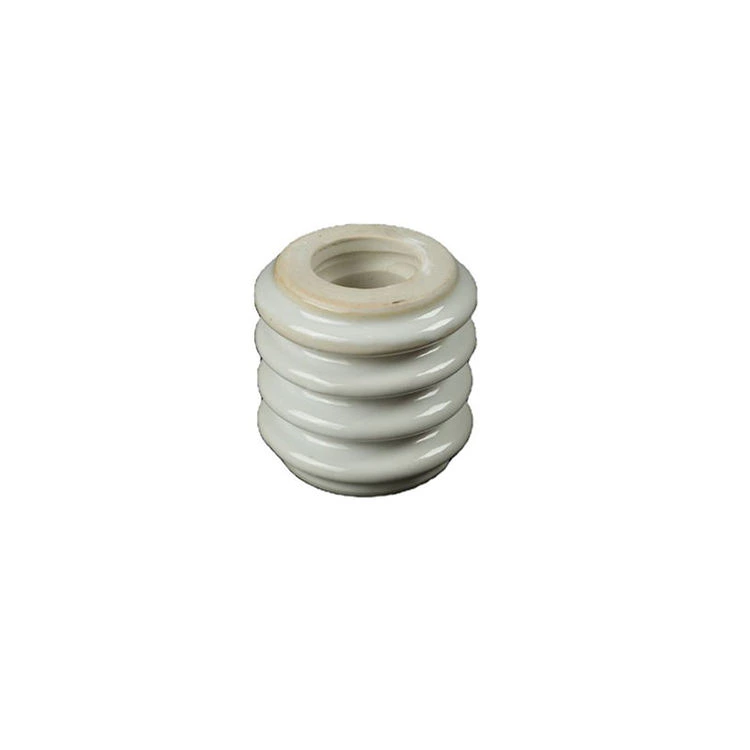

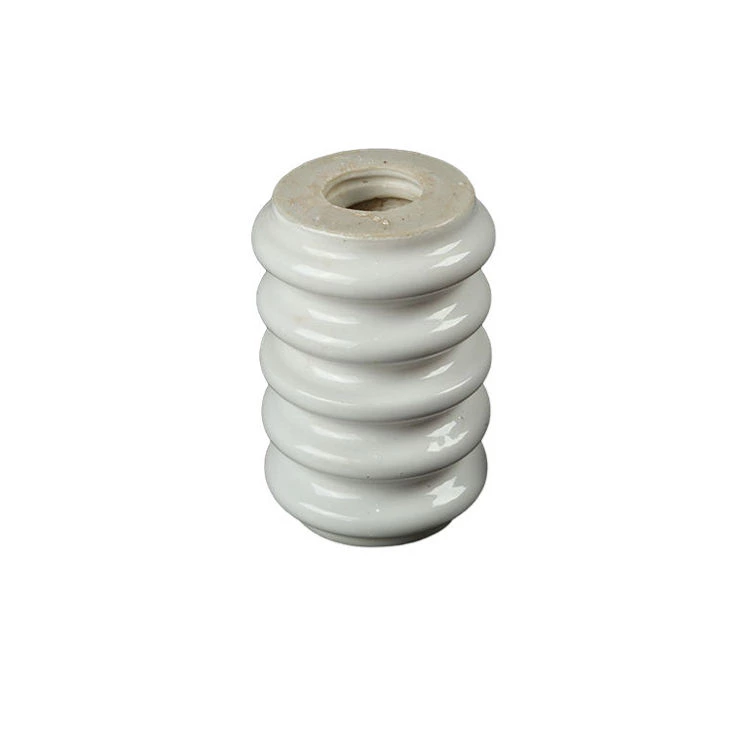

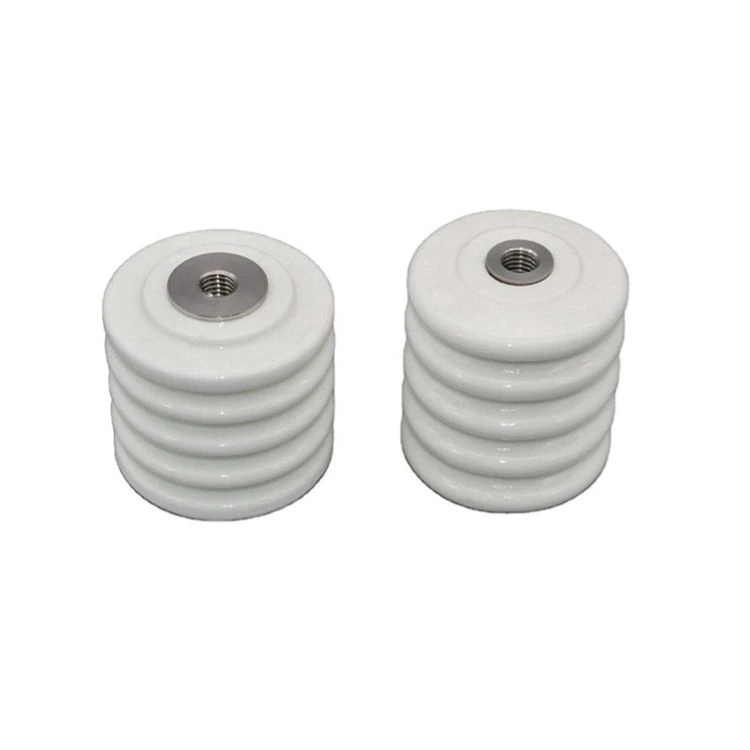

High And Low Voltage High-temperature Resistant Ceramic Insulator Premium Porcelain Alumina

This high and low voltage high-temperature ceramic insulator is crafted from premium porcelain alumina material, boasting excellent heat resistance and insulation properties. It finds its primary application in high-voltage and low-voltage equipment within power systems, such as transformers, circuit breakers, and insulators, ensuring the safe operation of electrical systems.

  1. High-Temperature Resistance: Manufactured using high-quality porcelain alumina material, it can withstand prolonged operation in high-temperature environments, ensuring stability and reliability of equipment.

  2. Outstanding Insulation Performance: The design and material selection of the insulator provide excellent electrical insulation properties, effectively preventing current leakage and breakdown, ensuring the safe operation of power systems.

  3. Corrosion Resistance: Constructed from premium ceramic material, it exhibits excellent corrosion resistance, resisting the effects of chemicals and humidity, thus extending its service life.

  4. Reliable Mechanical Strength: With a sturdy design structure, it possesses good mechanical strength and pressure resistance, capable of withstanding various loads and external forces in power systems, ensuring long-term stable operation of equipment.

  5. Precision Manufacturing Process: The insulator undergoes precise manufacturing processes and stringent quality control, ensuring stable and reliable product quality that meets high customer demands.



Talc Porcelain High Frequency Porcelain Physical Properties
  Properties Units Values
  Main Ingredients   MgO SiO2

Substance Properties


Volume Density g/cm2 28
Water Absorption Rate % 0
Sintering Temperature ºC 1350

Physical Properties


Hardness HV 800
Flexural Strength Kg/cm2 900
Compressive Strength Kgf/cm2 4000

Thermal Properties


Maximum Operating Temperature ºC 1100
Thermal Shock Resistance T(ºC) 200
Thermal Conductivity W/(m·K) 5
