Enhanced DUWAI Cast Resin boots Straight-Through Joint (RCRJ)
Resin filled straight joint for cable with XLPE, PVC EPR.
ApplIcatIon:
Resin filled straight joint for cable with XLPE, PVC EPR.
PUR cast resin technology was especially developed to seal and
protect power, signal and telephone cable. This new generation of two
component cast resin has been developed for the most demanding
environments and circumstances, assuring only the highest quality. Quick
setting properties in humid or even cold conditions make it a fast and
reliable solution.
• Be suitable for low voltage cable
• Adopt the filled of resins-pour install simply conveniently and express
• Sup excellent effect water proof. alkali-resistant
• Thin-fluid after mixing excellent adhesive strength on metal and
synthetic material
• Resistant against UV-rays and chemical influences
• Cast Moulds made of robust and high-quality transparent synthetic
material
• The cast resin will be delivered in a transparent mixing bag after
removing the protective bag and the separator the 2 components flow
together and must be mixed for about 3~4 minutes before filling into the
mould cast joint.
Kit contents:
• Mould
• Connector spacer
• 2 component PUR resin
• PVC tape
• Abrasive strip
• PE glove
• Installation instructions
• Funnel

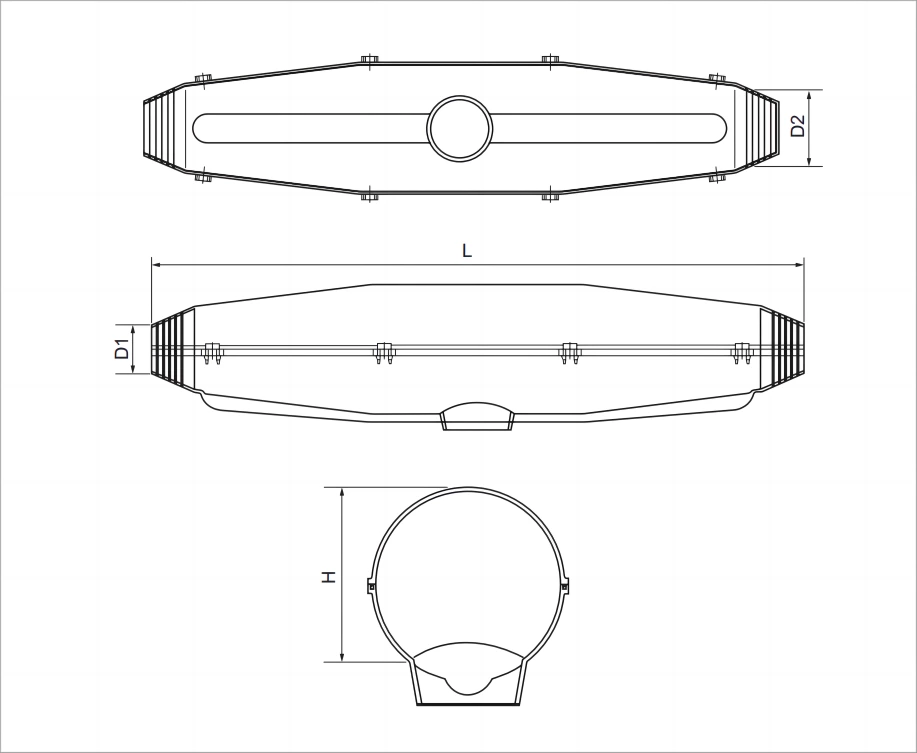

Product Dimensions:
|
Type |
Cable size (mm²) |
L(mm) |
H(mm) |
D1(mm) |
D2(mm) |
|
RCRJ-1 |
4×1.5-16 |
200 |
36 |
6 |
28 |
|
RCRJ-2 |
4×25-50 |
350 |
55 |
20 |
38 |
|
RCRJ-3 |
4×70-95 |
400 |
75 |
26 |
44 |
|
RCRJ-4 |
4×120-185 |
530 |
110 |
35 |
60 |
