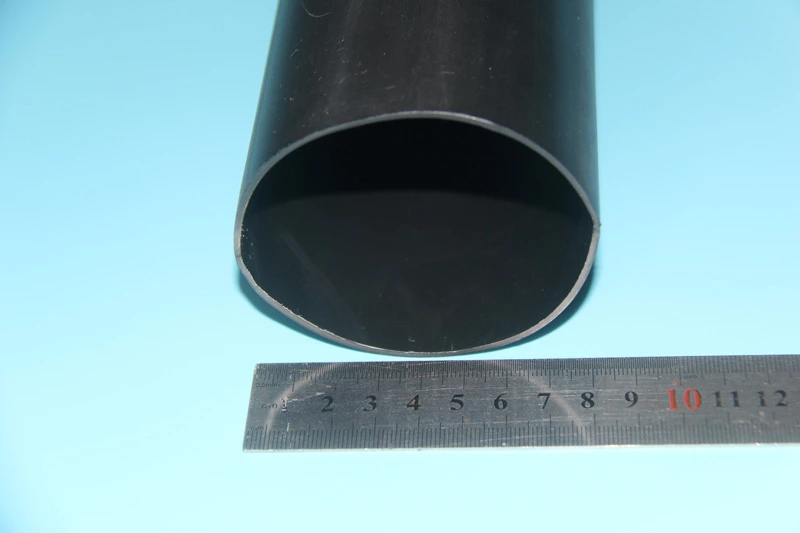

DUWAI DWSM - Thick wall adhesive heat shrink tubing
APPLICATIONS
It is made of polyolefin and hot melt adhesive. Compared with DWTM products, DWSM has a thicker wall thickness for better outer protection. With excellent abrasion and corrosion resistance, it is suitable for the insulation protection of cables and terminals and is widely used in communications, power cables and chemical pipelines.
OPERATING TEMPERATURE RANGE
- Continuous operating temperature: -55℃ ~ 110℃
- Minimum shrink temperature: 80℃
- Full recovery temperature: Above 120˚C
COLOR
Standard color: black
- Shrink ratio: 3:1
- Semi-rigid, abrasion resistant
- Waterproof, moisture and UV resistant
- Can meet very strict requirements of mechanical performance
- Excellent electrical insulation properties
- Compliance with RoHS and REACH environmental regulations

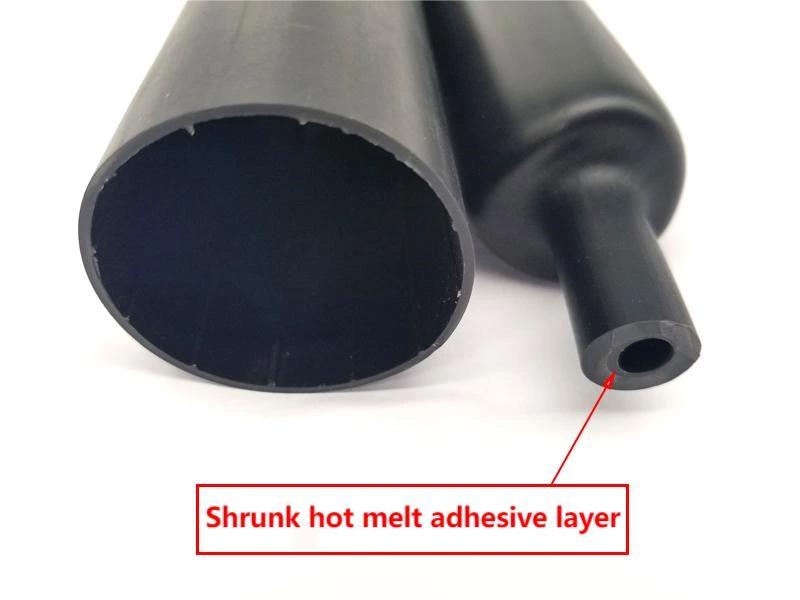

Adhesive thick-walled heat shrink tubing is composed of double layers of polyolefin material and hot melt adhesive. The outer layer of polyolefin has the characteristics of wear resistance, anti-corrosion, and good insulation. The inner layer of hot melt adhesive has the advantages of sealing, waterproofing, moisture-proof and impact resistance. The two together have the dual effects of insulation and sealing. It is mainly used for insulation protection of intermediate and terminal joints of low-voltage cables, insulation protection of various busbars, and anti-corrosion, moisture-proof, waterproof, wear-resistant and other properties of various pipelines. It has excellent insulation, sealing protection, impact resistance and wear resistance, provides sealing, fixation and protection for electronic and communication connections, and has excellent mechanical protection properties for cable connections and terminals. Its thicker wall thickness has excellent wear resistance, which can well protect cables or pipes and extend its service life. The shrinkage ratio of 3:1 is more convenient for irregular special-shaped parts and large-sized connections.
1. Sealing and insulation protection of joints and terminals of low-voltage power wires and cables
2. Anti-extrusion, sealing and anti-corrosion of wires, cables and various mechanical products
3. Sealing protection of marine cables
4. Anti-corrosion and sealing of gas pipelines
5. Other protective places that need to be sealed
|
Technical Data |
|
|
|
Property |
Test Method |
Typical Value |
|
Tensile strength |
ASTM D2671 |
≥12MPa |
|
Elongation at break |
ASTM D2671 |
≥350% |
|
Elongation at break after aging |
ASTM D2671 |
≥300% |
|
Dielectric strength |
ASTM D2671 |
≥10kV/mm |
|
Volume resistivity |
ASTM D2671 |
≥1012Ω‧cm |
|
Copper stability |
ASTM D2671 |
Pass |
|
Hot melt adhesive |
||
|
Softening point |
ASTM E28 |
85±5°C |
|
Water absorption |
ISO 62 |
≤0.2% |
|
Peel strength (PE) |
DIN 30672 |
≥4N/cm |
|
Specification |
|
|
||
|
Part Number |
As supplied |
After recovered |
Standard Length |
|
|
I.D. |
I.D. |
W.T. |
||
|
DWSM Heavy wall polyolefin tubing with hot melt adhesive |
||||
|
DWSM009 |
9 |
3 |
1.8 |
1.22 |
|
DWSM013 |
13 |
4 |
2.5 |
1.22 |
|
DWSM022 |
22 |
6 |
2.7 |
1.22 |
|
DWSM033 |
33 |
8 |
3.2 |
1.22 |
|
DWSM040 |
40 |
12 |
4.1 |
1.22 |
|
DWSM045 |
45 |
12 |
4.1 |
1.22 |
|
DWSM055 |
55 |
16 |
4.1 |
1.22 |
|
DWSM075 |
75 |
22 |
4.1 |
1.22 |
|
DWSM085 |
85 |
25 |
4.3 |
1.22 |
|
DWSM095 |
95 |
30 |
4.3 |
1.22 |
|
DWSM115 |
115 |
34 |
4.3 |
1.22 |
|
DWSM130 |
130 |
36 |
4.3 |
1.22 |
|
DWSM160 |
160 |
50 |
4.3 |
1.22 |
|
DWSM180 |
180 |
50 |
4.3 |
1.22 |
|
DWSM200 |
200 |
60 |
4.3 |
1.22 |
|
DWSM235 |
235 |
65 |
4.5 |
1.22 |
|
DWSM265 |
265 |
75 |
4.5 |
1.22 |
|
DWSM300 |
300 |
85 |
4.5 |
1.22 |
|
Part Number |
As supplied |
After recovered |
Standard Length |
|
|
I.D. |
I.D. |
W.T. |
||
|
DWGSM Heavy wall polyolefin tubing without hot melt adhesive |
||||
|
DWGSM009 |
9 |
3 |
1.8 |
1.22 |
|
DWGSM013 |
13 |
4 |
2.5 |
1.22 |
|
DWGSM022 |
22 |
6 |
2.7 |
1.22 |
|
DWGSM033 |
33 |
8 |
3.2 |
1.22 |
|
DWGSM040 |
40 |
12 |
4.1 |
1.22 |
|
DWGSM045 |
45 |
12 |
4.1 |
1.22 |
|
DWGSM055 |
55 |
16 |
4.1 |
1.22 |
|
DWGSM075 |
75 |
22 |
4.1 |
1.22 |
|
DWGSM085 |
85 |
25 |
4.3 |
1.22 |
|
DWGSM095 |
95 |
30 |
4.3 |
1.22 |
|
DWGSM115 |
115 |
34 |
4.3 |
1.22 |
|
DWGSM130 |
130 |
36 |
4.3 |
1.22 |
|
DWGSM160 |
160 |
50 |
4.3 |
1.22 |
|
DWGSM180 |
180 |
50 |
4.3 |
1.22 |
|
DWGSM200 |
200 |
60 |
4.3 |
1.22 |
|
DWGSM235 |
235 |
65 |
4.5 |
1.22 |
|
DWGSM265 |
265 |
75 |
4.5 |
1.22 |
|
DWGSM300 |
300 |
85 |
4.5 |
1.22 |
