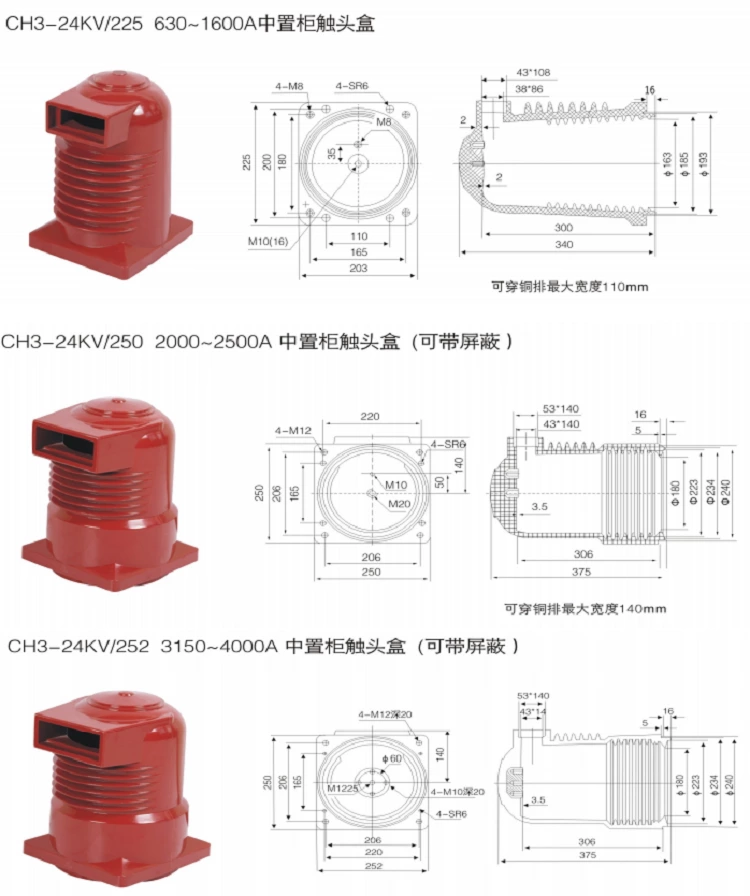

YUEQING DOWE High voltage CH3-24Q 225 indoor red epoxy resin Contact box for 24kv switchgear

OEM service: 1、Color: support red ,brown or other customsized 2、Insert: support brass,steel or other 3、Model: support OEM model
Model:
CH3-24Q 225
Voltage:
24KV
Height:
340
Diameter:
185
Screw:
4-M10
Material:
Epoxy resin
MOQ:
2 pcs
Certificate:
CE,RoHS,SGS,REACH

YUEQING DOWE High voltage CH3-24Q 225 indoor red epoxy resin Contact box for 24kv switchgear



Insulation Contact Box Description

The contact box product uses epoxy resin material with excellent insulation performance, and is injection molded using the static mixed APG process commonly used in the market. It uses high-quality pressure-resistant, partial discharge and other testing equipment to strictly control the product quality in accordance with national standards.

1. Material: epoxy resin
2. Application: KYN61C-40.5KV Indoor HV switchgear fittings
3. Certificate: CE
4. Reliable installation, achieve five preventation requirement.
5. More than 10 years experience for manufacturing in this line
6. Most competitive prices with best quality, promptly delivery



Application

Epoxy resin cast insulation contact box, connect with charged display device, used in switchgear application.
The contact box is an epoxy resin APG process pressure gel molding structure used in various handcart switch cabinets, which plays a role in insulation isolation and excessive connection.



Our service

Delivery

By express/By sea/By air/By land transportation

Supply

5000pcs/week

Sample

The seller provides 2 samples for free, and the buyer pays the freight

Packing

By carton
